- Case IH
- 16 A3mi Case Sealer

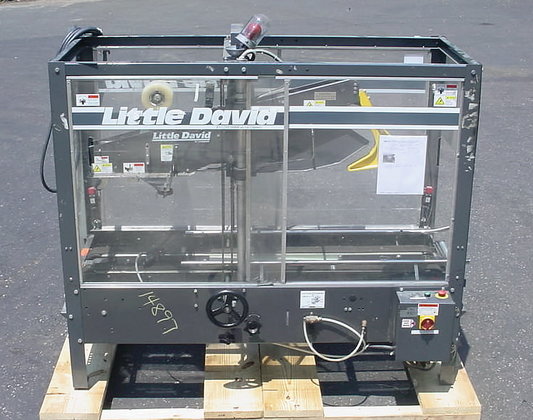

Little david flap folder and top case taper, model 16 a3mi, serial # 16001816a3mi. Features manufacturers performance rating of up to 14 cpm, top taping head for 3" pressure sensitive (formerly closing bottom sealed cases), taper will accept bottom tape head for 3" tape, pneumatically operated flap folder, dual carton transport belts at 60 ft/min, carton capacity (length) 8. 25" to 24", (width) 4. 5" to 20", (height) 4. 5" to 20", wired for 460 volt/3 phase service, . 8 amp, 1/3 horsepower drive, see through acrylic silding doors on both sides with electro mechanical safety interlocks to prevent open operation, tape head accepts 3" wide tape and features low tape indicator, manually adjustable, dual emergency stops. 22" infeed height with threaded leveling feet, requires . 15 cu/ft free air at 75 psi. Formerly used in plastic component mfg.
