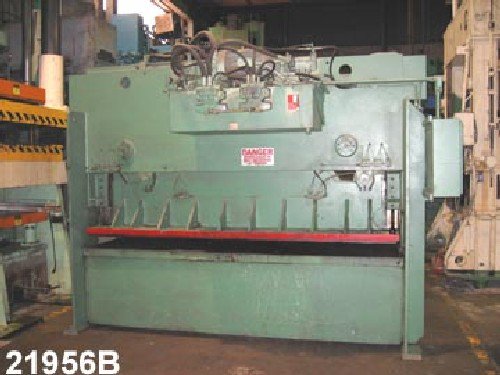

100 Ton, HTC, 7"Str, 14"DLO,
Location:
Memphis, TN
Manufacturer:
Vickers presses
Capacity:
Forming....................... 100 Tons
Stroke:
0 - 7" Maximum

Specifications

Condition:
used
Stock number:
1361
Return:
144 IPM
Capacity:
Forming....................... 100 Tons
Controls:
Pushbutton Operation W/ Stroke & Pressure Control
Division:
Metalworking
Punching:
67 Tons
Approx. speeds:
Closing................. 96 IPM
Floor to top of bed:
34"
Area of bed(nominal):
125"L-R x 48"F-B
Approx. machine weight:
38,000 lbs.
Area of slide(nominal):
122"L-R X 48"F-B
Stroke of guided slide:
0 - 7" Maximum
Daylight opening(total):
14" Maximum
Approx. overall dimensions:
150"L-R X 85"F-B X 116"H
Power unit(top rear of press):
Vickers Hydraulic Pump,
Distance between side housings:
125.5"L-R
Subcategory:
Presses, hydraulic

Description

Model 100MS S/N 278T1263
SPECIFICATIONS:
Capacity: Forming....................... 100 Tons
Punching...................... 67 Tons
Distance Between Side Housings.......... 125.5"L-R
Area of Bed(Nominal).................... 125"L-R x 48"F-B
Area of Slide(Nominal).................. 122"L-R X 48"F-B
Stroke of Guided Slide.................. 0 - 7" Maximum
Daylight Opening(Total)................. 14" Maximum
Floor to Top of Bed..................... 34"
Approx. Speeds: Closing................. 96 IPM
Pressing to 100 Tons.... 27 IPM
Return.................. 144 IPM
Approx. Machine Weight.................. 38,000 lbs.
Approx. Overall Dimensions.............. 150"L-R X 85"F-B X 116"H
EQUIPPED WITH:
Straight Side
Floor Standing
Controls: Pushbutton Operation W/ Stroke & Pressure Control
Dual Palm Buttons
Power Unit(Top Rear of Press):Vickers Hydraulic Pump,
Driven By 15 HP Motor.
1750 RPM, 230/460/3/60
