Location:
Marlboro Township, NJ
Model:
Ghpd 422

Specifications

Condition:
used
Serial number:
9687074A
Stock number:
14279
Subcategory:
Pumps
Subcategory 2:
Lobe type

Description

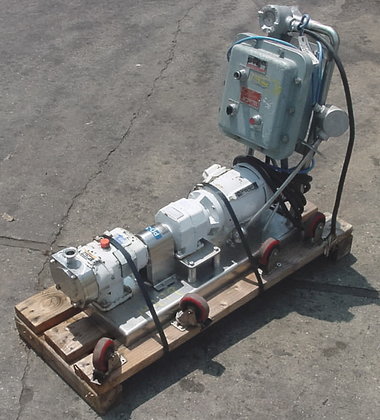

G & h - alfa laval stainless steel (316) sanitary lobe type pump, model ghpd-422, serial # 96-8-7074a. Features 1. 5" inlet and outlet with tri clamp connections, rated for maximum output of 32 gpm at 1000 rpm, 15 gpm as configured with 1 horspower us motors drive and sterling gear reducer yielding final pump speed of 499 rpm, pump rated 3. 2 gpm per 100 revolutions, three arm stainless steel lobes, vertically configured pump, mounted on ss base with casters, 220/440 ph 3 voltage, ul rated for hazardous locations under class one, group d and class ii, groups f & g. Formerly used in beverage manufacturing.
