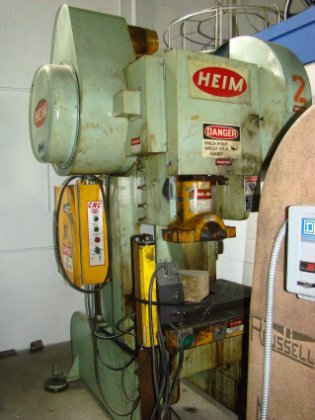

55 Ton, HEIM, #5-OBI-BG, 3"
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
5881
Controls:
inch/single/continuous/off, Set of machine pads
Division:
Metalworking

Description

SPECIFICATIONS:
Capacity 55 tons
Stroke 3"
Slide adjustment 4"
Ram area 15" x 12"
Bed area 18" x 28"
Bolster plate 1-3/4"
Shut height, SDAU, over bed 13"
Depth of throat 10"
Press speed 44 spm
Main motor (900 rpm) 5 HP
Motor speed 1740 rpm
Electrics 230/460/3/60
Dimensions (L x W x H) 50" x 68" x 107"
Weight, approx. 8,000 lbs.
ACCESSORIES:
Air clutch and brake, Dual palm buttons, One shot lubricator
Controls: inch/single/continuous/off, Set of machine pads
