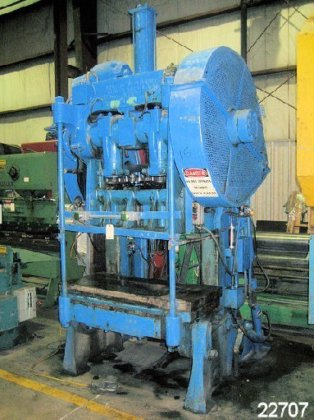

75 Ton, PERKINS, #650-B, Air
Location:
Memphis, TN
Manufacturer:
Perkins presses
Capacity:
75 Ton
Stroke:
6"

Specifications

Condition:
used
Stock number:
1360
Motor:
7-1/2 HP
Speed:
35 SPM
Stroke:
6"
Voltage:
220/440/3/60
Capacity:
75 Ton
Division:
Metalworking
Area of bed:
49"L-R X 20"F-B
Throat depth:
11"
Area of slide:
32"L-R X 13-1/2"F-B
Slide adjustment:
3"
Bolster thickness:
2-3/4"
Opening thru back:
33"
Floor to top of bed:
30"
Approx. machine weight:
12,800 lbs.
Approx. overall dimemsions:
88"L-R X 78"F-B X 125"H

Description

Model 650-B S/N 25473
SPECIFICATIONS:
Capacity............................ 75 Ton
Stroke.............................. 6"
Slide Adjustment.................... 3"
Shut Height (SDAU) to Top of Bed.... 14"
Area of Bed......................... 49"L-R X 20"F-B
Bolster Thickness................... 2-3/4"
Area of Slide....................... 32"L-R X 13-1/2"F-B
Throat Depth........................ 11"
Opening Thru Back................... 33"
Floor to Top of Bed................. 30"
Speed............................... 35 SPM
Motor............................... 7-1/2 HP
Voltage............................. 220/440/3/60
Approx. Machine Weight.............. 12,800 lbs.
Approx. Overall Dimemsions.......... 88"L-R X 78"F-B X 125"H
(Over CounterBalance)
EQUIPPED WITH:
Air Actuated Mechanical Clutch
Air Counterbalance
Back Geared Type
Dual Palm Buttons For Run
Electric Foot Switch
Selector Switches For Palm Buttons-Single Stroke and
Foot Switch Single Stroke
Push Buttons For Start/Stop
Rotary Cam Limit Switches
Automatic Oil Lubrication
Inclining Mechanism
Production Counter
