Location:
Marlboro Township, NJ
Model:
20 Gallon

Specifications

Condition:
used
Stock number:
11094
Subcategory:
Stainless steel

Description

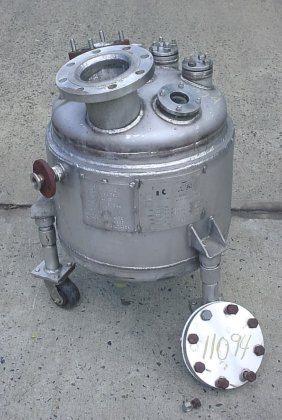

20 gallon stainless steel reactor body by tolan machinery company, inc. Serial number 6451. Features dish top and bottom, national board rated (# 4622) 60 psi @ 310 degrees f on shell and 75 psi @ 310 degrees f on stainless steel jacket, 18" diameter x 18" straight side, 7 top inlets as follows: 5" with 10" od 8 bolt flange, 3" with 7. 5" four bolt flange, two 2" inlets capped with 3. 5" four bolt blind flanges, one 1/2" inlet capped with blind 3. 5" od 4 bolt flange, one 1/2" top center inlet through 3. 5" od four bolt flange with 1. 5" tri clamp connection, 4. 5" od four bolt flange with 2" central signt glass, four internal wall baffles, jacket covers full bottom and 80% of side wall, 2" center bottom outlet to 7" four bolt bottom flange with one inch outlet and 1. 5" tri clamp connection, internal temperature well side entering near bottom. Mounted on 2" ss pipe legs threaded into hip sockets with casters. (legs may be lengthened)
