Location:
Marlboro Township, NJ
Manufacturer:
Mueller reactors
Model:
600 Gallon Reactor

Specifications

Condition:
used
Serial number:
P80842
Stock number:
12078
Subcategory:
Stainless steel

Description

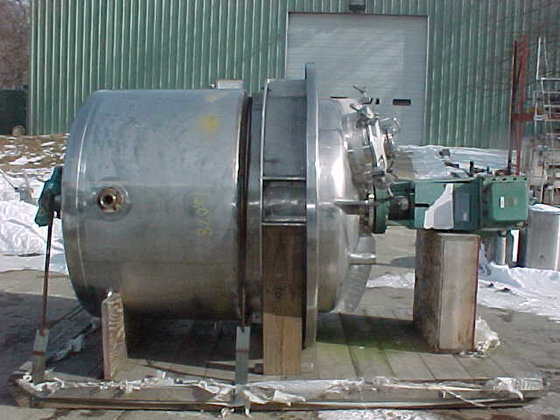

Paul mueller stainless steel sanitary 600 gallon/2300 liter reactor, model f, serial # p8084-2. Features fully jacketed, national board rated (# 7519) body for 75 psi @ 350 degrees f, shell rated for 14. 9 psi (rating appears on drawing only) @ 350 f, shell (10 gauge) and jacket (18 gauge on 10 gauge) are 304 l stainless steel, 60" diameter x 54" straight side with dished heads and 11 15/16" deep bottom dish, 4" center bottom discharge with pittsburgh air actuated flush seating ball valve, insulated and shrouded tank body with 2b external finish, 150 grit internal polish, four 3" x 28" long internal baffles, top dish head features 18" manway with hinged dome cover with central sight glass and clamp down closures, four top inlets with tri clamp connections (3-2", 1-3"), unit is designed to mount through deck on load cells or requires legs from existing body flange, top center mounted 15 horsepower agitator by lightning mixer, model # 73-s-15, serial # 09225001, right angle...
