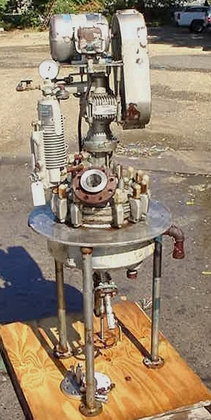

Pfaudler 5 gallon capacity 316 l stainless steel reactor, mfg. # r 686-1206. Features anchor type scraper agitator, national board rated (#43758) for 200 psi, full vacuum @ 350 deg. F in shell and 165 psi @ 350 deg. F (w/o fv) in jacket and 150 psi in jacket with full vacuum use in shell, shell is 316 l, jacket 304 ss, 1. 5 horsepower, explosion proof motor belt driving pfaudler model dwv5021oakc, size 2. 500 gear reducer @ 10 to 1 ratio, 175 rpm final speed, mechanical shaft seal with pfaudler seal lubricator, 1" center bottom discharge with 316 stainless steel valve by "rod-seal" valve rated for 300 psi @ 450 deg. F mounted on three carbon steel legs with insulated vessel body.
