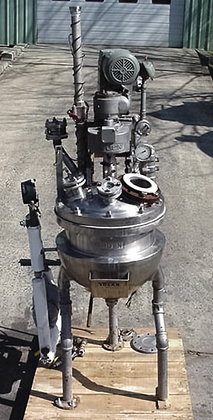

20 gallon "twin agitated" 316 stainless steel food grade reactor by groen manufacturing, model ta 20 sp, serial # 6633. Features 316 ss shell national board (div. 1) rated (#49950) for 150 psi full vacuum @ 366? F, jacketed body (repaired by tolan mach. 1986) under same nb# is rated for 150 psi @ 400? F, groen twin agitator includes scraper with hinged teflon blades, six arm secondary paddle agitator both driven from common gear box with 1 horsepower us motors variable speed drive ul rated for hazardous locations under class 1, group d, and class ii, groups f & g, 284 to 1135 rpm, split body with bolt on hinged dome top with intergal agitator drive, 2" center bottom discharge with flush seating ball valve, tri clamp connection and 24" floor clearance, includes operation xp stop/start, original process steam piping, 230/460/3 phase voltage (wired for 460 service) mounted in painted steel frame with three legs. Formerly used in food flavor process developement.
