Location:
Marlboro Township, NJ
Model:
Storage Vessel

Specifications

Condition:
used
Stock number:
13199
Subcategory:
Carbon steel

Description

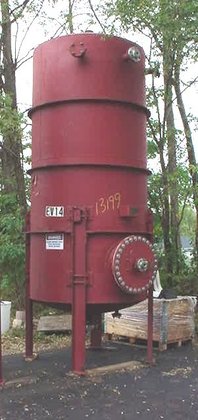

1400 gallon vertical closed top pressure rated storage vessel by union carbide, work order # 1152-50-0-73273, 60" diameter x 10' straight side with dished heads, vessel shell is rated for 15 psi @ 400 degrees f, 20" side bottom manway with bolt on cover with 3" center outlet with flanged connection, one bottom side outletwith flanged connection, 4" center bottom outlet with flanged connection and npt reducer to 1. 5" , 1 - 1. 5" off ctr. Btm connection, 2 top flanged connections, mounted on 4 - six inch channel legs w/ 16" floor clearance. Formerly used in food flavors industry.
