Location:
Marlboro Township, NJ
Manufacturer:
Walker tanks
Model:
3000 Gal

Specifications

Condition:
used
Stock number:
10676
Subcategory:
Stainless steel

Description

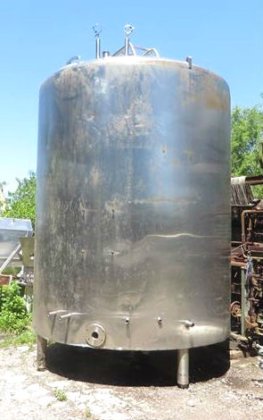

3000 gallon dome top stainless steel pressure wall processing vat, with wide bottom and side sweep agitation. (3) presure zones. Includes adjustable baffle, spray ball, top manway, (2) 3" triclamp inlet fittings, two-speed agitator drive. Dimensions: 96" diameter x 112" deep, approx. 168" high overall. The motor and the reducer is required (estimate 3/101/2hp 10/20 rpm). There is no mfg tag, but we think it's a walker. Extensive welding around bottom interior requires grinding and polishing.
