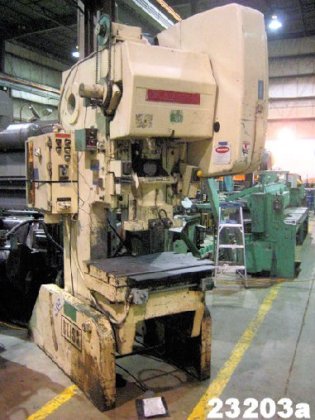

60 Ton, BLISS, Mod. C-60,
Location:
Memphis, TN
Manufacturer:
N/A
Capacity:
60 Ton
Stroke:
4"

Specifications

Condition:
used
Stock number:
1378
Motor:
5 HP
Stroke:
4"
Voltage:
230/460/3/60
Division:
Metalworking
Area of bed:
32"L-R X 21"R-B
Throat depth:
11"
Approx. speed:
140 SPM
Area of slide:
17"L-R X 12-1/2"F-B
Slide adjustment:
3"
Tonnage capacity:
60 Ton
Bolster thickness:
3"
Opening thru back:
15"
Floor to top of bed:
35"
Shank hole diameter:
3"
Approx. machine weight:
12,000 lbs.
Shut height(sdau)to top of bed:
14-1/4"

Description

Model C-60 S/N H66671
SPECIFICATIONS:
Tonnage Capacity........................... 60 Ton
Stroke..................................... 4"
Slide Adjustment........................... 3"
Shut Height(SDAU)To Top of Bed............. 14-1/4"
Area of Bed................................ 32"L-R X 21"R-B
Bolster Thickness.......................... 3"
Area of Slide.............................. 17"L-R X 12-1/2"F-B
Shank Hole Diameter........................ 3"
Throat Depth............................... 11"
Opening Thru Back.......................... 15"
Floor to Top of Bed........................ 35"
Approx. Speed.............................. 140 SPM
Approx. Machine Weight..................... 12,000 lbs.
Approx. Overall Dimensions(L-R X F-B X H).. 63" X 81" X 113"
Motor...................................... 5 HP
Voltage.................................... 230/460/3/60
EQUIPPED WITH:
Air Clutch & Brake
Bliss Air Cushion W/2" Stroke
Dual Palm Buttons for Run
Electric Foot Switch
Pushbuttons for Start-Stop & Top Stop
Key Selector Switches for Inch-Off-Single Stroke-Con-
tinuous & Hand or Foot
Rotary Cam Limit Switches
Bijur Automatic Oil Lubrication
Triad Brake Monitor
Air Surge Tank
Knockout Slot in Slide
