Location:
Marlboro Township, NJ
Model:
250 Gallon Coil Tank

Specifications

Condition:
used
Serial number:
94120B
Stock number:
14943
Subcategory:
Stainless steel

Description

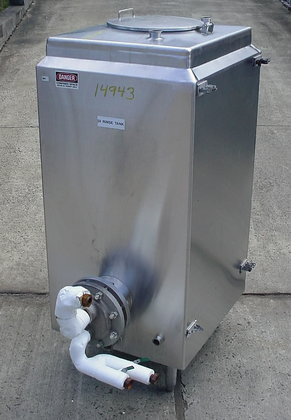

250 gallon pharmaceutical grade heat exchanger tank, rectangular body with external shroud, through wall mounted 26 square foot heat exchanger with stainless steel tubes, insulated body and polished pharmaceutical grade finish, interanl dimensions 32' x 28" x 5' deep, 18" top manway with hinged cover, flat sloped bottom to 3" front bottom discharge with tri clamp connection and 12" floor clearance, twin secondary front bottom dischages are ported left and right of 3" outlet with 2" tri clamp connections and 15" floor clearance, 36" long "u" bend heat exchanger bundle is national board rated and built by j. F. D. Tube and coil products, (hamden, ct) serail # 94120b, rated for 150 psi @ 32 to 450 degreees f, 48 x . 75" tubes (304 ss) 2. 5" inlet and 1" outlet with npt connections, 36" x 32" x 80 oad, built in 1994. Formerly used in pharmaceutical grade water treatment. Internal passivation available.
