Location:
Marlboro Township, NJ
Model:
325 Gal

Specifications

Condition:
used
Serial number:
95PH52252
Stock number:
14990
Subcategory:
Stainless steel

Description

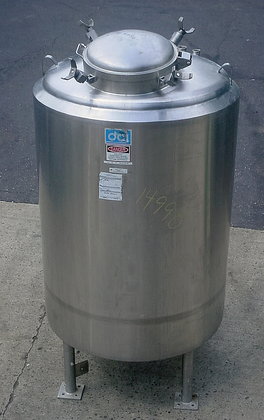

325 gallon closed top pharmaceutical grade stainless steel vertical tank by dci inc. (st. Cloud mn.) serial # 95ph52252. Features 316l construction, internal vacuum and pressure rated, fully shrouded/insulated body, national board rated tank shell (# 3039) for -15" vacuum to 30 psi @ temperature range of -20 to 300 degrees f, dish top and bottom, 18" top manway with hinged dome cover with four threaed locking clamps, seven top inlets grouped to one side of vessel with tri clamp connections, two opposed lifting lugs, 2" center bottom discharge with manually operated plug valve and 18" floor clearance, one bottom side temperature well and bottom port for flush temperature sensor, mounted on fourstainless steel legs with floor pads. Formerly used for usp water storage in ethical pharmaceutical service.
