Top Seller

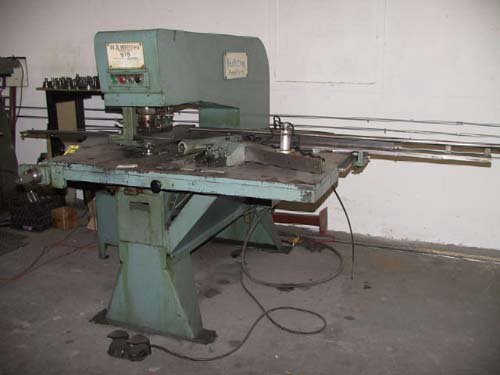

15 Ton, W.A. Whitney 615
Location:
Hialeah, FL
Manufacturer:
Whitney presses

Specifications

Condition:
used
Stock number:
5018
Division:
Metalworking
Subcategory 2:
Punches, fabricating

Description

Model Number 615
Year of Manufacture 1967
SPECIFICATIONS:
Tonnage 15
Throat 36"
Sheet size 30" x 48"
Maximum material .250 mild steel
Capacity (mild steel) 4" in 14 ga.
3" in 7/64"
2" in 1/8"
1" in 3/16"
Approximate weight 2,500 lbs
Shut height - less bolster 6-5/8"
Size of bolster 1 1/4" X 10" X 18-1/2"
Stroke 1 3/4" adjustable
Slug opening in bed 5 1/4" dia
Hole in ram 1-9/16" X 2-1/4"
Operating pressure 1500 PSI
Die height above floor 40"
Floor dimensions with duplicator 84"D x 125"W
Overall Height of press 63-15/16"
Main motor 2.5 HP
Electrics 230/460/3/60
Weight approximate 2,500 lbs
ACCESSORIES:
Micrometer gauge, Duplicator, Electric foot pedal,
Assorted tooling, Up to 4" capacity holders
