Top Seller

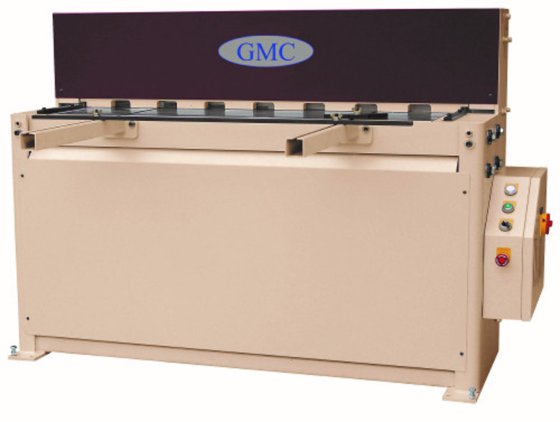

12 Ga. x 52", GMC,
Location:
Hialeah, FL
Manufacturer:
GMC

Specifications

Condition:
used
Stock number:
6464
Division:
Machine Tools
Inland freight:
$ 1,500.00

Description

SPECIFICATIONS:
Maximum cutting length 52"
Maximum thickness--mild steel 12 gauge
Maximum thickness--stainless steel 16 gauge
Strokes per minute--adjustable 16 to 20
Back gauge range 26"
Front gauge range 24"
Top blade rake angle 1.5 degree
Main motor 3 HP
Hydraulic oil tank capacity 15 gallons
Electrics 220/440/3/60
Shipping weight 1,950 lbs.
Dimensions (L x W x H) 68" x 33" x 51"
STANDARD ACCESSORIES:
26" manual back gauge with inch/metric dual scale & one side
operated handwheel
60" long squaring arm with inch/mm scale, Work light
Two 24" front support arms, Spring independent hold-downs
Two 14" side gauges with inlaid inch/metric dual scale
Full length finger guards, Removable safety foot pedal control
Tool box, One set of blades, Spring independent hold-downs
STANDARD FEATURES:
ISO 9001 certified, HD all steel construction for maximum rigidity
German logic quiet hydraulic system, Work light with shadow line
Adjustable stroke from 16 to 20 strokes per minute
60" long squaring arm with inch/mm scale, Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard, Safety type foot pedal control
Front supports and 2 side guages; Jog, single, continuous operation modes
One year warranty for parts
Inland freight . . . . . . . . . . . . . . . . . . . . . . . . $ 1,500.00
