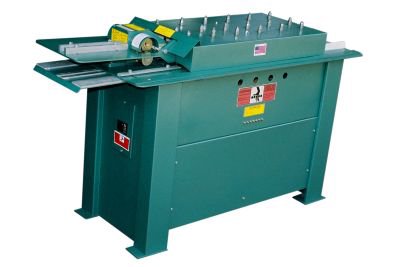

Tin Knocker, Roll Former Fourplex

Tin Knocker, Roll Former Fourplex S & Drive, 5 hp, Dim: 74"Wx30"Lx50"H, Weight: Approx. 1280 lbs in Easton, PA

Location:
Easton, PA
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
27
Motor:
5 HP (1800 RPM) 230 Volt, 3 Phase, 60 Hz "S"
Capacity:
See features
Division:
Metalworking
Dimensions:
74" W x 30" L x 50" H
Cleat width:
1 1/16"
Approx. speed:
100 FPM
Approx. weight:
1280 lbs
Drive cleat width:
1 1/18"
Category:
Roll formers

Description

Turn scrap into drives, quickly and efficiently. Let this machine pay for itself-and fast! A great connector machine and more!
Truly a poly-functional machine, the Tin Knocker Fourplex is the epitome of "value" and "flexibility".
Configured with S & Drive down the center and choice of either Male & Female Button Lock or 3 in 1 and Pittsburgh Rolls,
this machine comes standard with S & Drive Slitter to turn scrap into useful product.
Pays for itself! Turns scrap metal into usable drives. Terrific payback.
Features:
Drive Cleats 20-26 Ga.
S Cleats 22-28 Ga. 20-28 Ga.
Right Angle Flange 22-26 Ga.
Standing Seam 22-26 Ga
Tee Connection 22-26 Ga.
Male & Female Button Lock 20-24 Ga.
Slits & Feeds S & Drive Rolls
Specifications:
Capacity: See features
Motor: 5 HP (1800 RPM) 230 Volt, 3 Phase, 60 Hz "S"
Cleat Width: 1 1/16"
Drive Cleat Width: 1 1/18"
Approx. Speed: 100 FPM
Dimensions: 74" W x 30" L x 50" H
Approx. Weight: 1280 lbs
