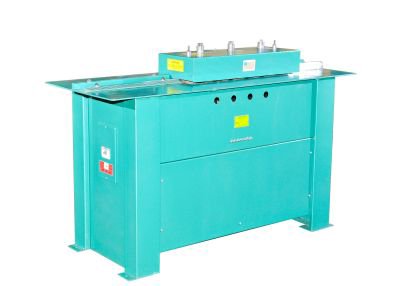

Tin Knocker, Roll Former Pittsburgh

Tin Knocker, Roll Former Pittsburgh 16 GA, Cap: 16-20 Ga, Motor: 3 HP, Speed: 40-45 ft per minute in Easton, PA

Location:
Easton, PA
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
28
Motor:
3HP, 230/3/60, 1PH Optional
Speed:
40-45 ft per minute
Capacity:
16-20 Ga. uses approx. 1-3/8" of material
Division:
Metalworking
T-connection:
22-26 Gauge 1-3/4" 5/8" seam
Standing seam:
22-26 Gauge 1-1/8" 5/8" seam
Drive cleat rolls:
20-26 Gauge 2-1/8" 1-1/8" width
Right-angled flange:
22-26 Gauge 1-1/8" 5/8" seam
Depth of pocket/size:
" width of hammer-over edge adjustable up to 3/8
Category:
Roll formers

Description

IT COMES LOADED!!! The 16 gauge Pittsburgh Lock machine has 7 forming stations with 2 forming positions.
One position forms the Pittsburgh Lock, while the outboard position has the ability of forming a number of other profiles, to include:
Acme, Drive Cleat or 4 in 1 rolls (3/16" Right Angle Flange, 7/16" Right Angle Flange, Standing Seam and T-Connection.
You don't pay extra for the choice of opposing rolls, either. You get your choice of rolls opposite the Pittsburgh rolls.
Specifications:
Capacity: 16-20 Ga. uses approx. 1-3/8" of material
Motor: 3HP, 230/3/60, 1PH Optional
Depth of Pocket/Size: " width of hammer-over edge adjustable up to 3/8
Speed: 40-45 ft per minute
CHOOSE FROM:
Acme ("Double Seam") Rolls (Type "L"): 16-22 gauge 1-1/4" 7/16" seam
Drive Cleat Rolls: 20-26 Gauge 2-1/8" 1-1/8" width
Combination 4-in-1 Rolls and 4-Step Gauge Straight Right-AngledFlange Rolls:
16-24 Gauge up to 7/16" up to 7/16" high
Right-Angled Flange: 22-26 Gauge 1-1/8" 5/8" seam
Standing Seam: 22-26 Gauge 1-1/8" 5/8" seam
T-Connection: 22-26 Gauge 1-3/4" 5/8" seam
