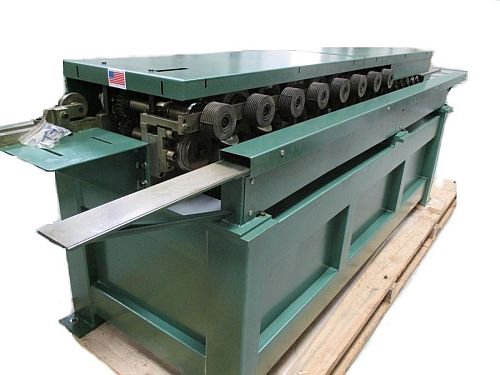

Tin Knocker, TDC-P Roll Former,
Location:
Easton, PA
Manufacturer:
N/A
Weight:
450 lbs

Specifications

Condition:
used
Stock number:
32
Weight:
450 lbs
Division:
Metalworking
Passline:
38.625"
Dimensions:
(LxWxH) 38"x136.75"x46"
Forming speed:
50fpm
Shaft diameter:
1.25"
Forming sections:
14
Subcategory:
Roll formers

Description

It is versatile, too.
This 14 station roll former comes standard with the TDC-P rolls and the Clip rolls outboard, leaving the center tool space for other profile rolls.
This TDC-P roll former will roll sheet metal into leak proof, sealable TDC-P flanges at speeds of up to 50 fpm, automatically! Start saving time and money by forming your own TDC-P flanges -
with their snap on corners - and eliminate spot welding altogether.
The TDC-P roll former works with Autolock stiffeners to greatly reduce tie rod and angle iron use.
Specifications:
Capacity: TDC-P 18-24 ga. for TDC-P Uses approx. 1-7/8" of material on TDC-P 50 feet per minute TDC-P Clip (min. length 20") 22 ga. 2-1/8" 2 1/8"
Forming Sections: 14
Shaft Diameter: 1.25"
Passline: 38.625"
Forming Speed: 50fpm
Dimensions: (LxWxH) 38"x136.75"x46"
Weight: 450 lbs
