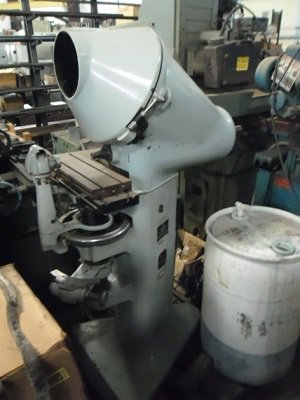

Jones and Lamson, Screen Diameter

Jones and Lamson, Screen Diameter 14 in. Table 6 x 30, Long. Table Travel 8 in, Vertical Table Travel 4 in. in Longview, TX

Location:
Longview, TX
Manufacturer:
Screen

Specifications

Condition:
used
Stock number:
2003pr
Category:
Comparators

Description

SPECIFICATIONS:
Screen Diameter - 14”
Size of Measuring Table - 6” X 30”
Long. Table Travel - 8”
Vertical Table Travel - 4”
Angular Measuring Capacity - 360 deg. Chart Rot.
Cross Travel for Focusing - 1.375"
Lens Mount - Single
Distance, Lens Centerline to Table-Max - 8-1/4” - Min 4-1/4”
Electrics - 120/1/60
Floor Space - 33” L-R X 40” F-B X 70” High
Weight (approx.) - 900 lbs.
ACCESSORIES:
10X Lens
Light Visor
