Location:
Lincolnwood, IL
Manufacturer:
SEC press brakes
Stroke:
24"

Specifications

Condition:
used
Year:
1996
Serial number:
626
Stock number:
bra454
Working length:
10'
Clamping beam stroke:
24"
Positioning accuracy:
±.004"
Max. clamping beam force:
40 tons
Maximum positioning of b.g:
10 ft.
Clamping beam repeatability:
±.004"
Sheet thickness - mild steel:
3/16
Max. speed of clamping beam up:
180"/min
Space required excl. hydr unit:
15 ft by 14 ft.
Max. speed of clamping beam down:
180"/min.
Hydraulic power unit will require:
50" x 35" approx.
Repeatability of folding beams (2):
±0.1°
Angle adjustment for upper and lower beam:
0-135°
Up/down adjustment of bending beam (lower):
4"
Up/down adjustment of bending beam (upper):
24"
Minimum positioning of flip up stops on b.g:
1/2"
Weight of machine without back gauge, approx:
20,000 lbs
Programming b.g. positioning in increments of:
.004"
Daylight of clamping beam (without tool) approx:
30"
Shutheight of clamping beam (with tools) 6"high:
0"
Speed of folding beam complete cycle from 0-90° bend (lower):
4 sec.
Speed of folding beam complete cycle from 0-90° bend (upper):
4 sec.
Subcategory:
Cnc

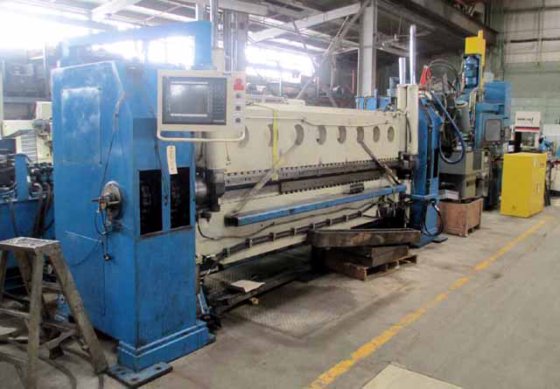

Description

Equipped With:
Mitsubishi EC900 With Full CRT. Graphics Keyboard. Pendant For Front Or Rear Operation. Beams. And Back Gauge With Pneumatic Flip Up Stops. 10' Wide Back Gauge With (4) 10' Loading Arms. Pneumatic Flip Up Stops At 20" Increments. Crowning Attachments. Variable Speed Folding Beam. 2-Axis Synchronization For Parallelism Control Of Clamping And Bottom Beam With Off Center Loads. CNC Controlled Back Gauge And Flip Up Stops. (2) Lift Up Arms On Back Gauge To Assist Turning Over Panels. Large Quantity Of Dies. Die Handling Cart. Work Zone Barrier Guards.
