Location:
Indian Trail, NC
Manufacturer:
B&G
Model:
BGP-RHBXT-4-36
Capacity:
51.2 KW
Weight:
24,000 lbs

Specifications

Condition:
used
Year:
2002
Serial number:
BGP-RHBXT-4-36
Stock number:
1447
Platen size:
24" x 16.38"
Bottom stroke:
3.06" (77.7mm)
Heater length:
38" (965mm)
Condition info:
Very Good
Overall weight:
24,000 lbs
Maximum daylight:
13.50" (343mm)
Maximum diameter:
5.75" (140mm)
Maximum thickness:
0.190" (4.8mm)
Neck finish - max:
43mm
Neck finish - min:
18mm
Overall dimensions:
138"L x 121"W x 96"H
Body diameter - max:
1.50" (38mm)
Body diameter - min:
0.62" (16mm)
Total mold thickness:
7.5" (190mm)
Total heater capacity:
51.2 KW
Clamp stroke (3" x 2"):
6" (152mm)
Maximum overall length:
8" (203mm)
With levelers in place:
63"
Total number of pallets:
64
40 tons for tonnage clamp:
66 Tons (64 Tons Metric)
Equilibrations length-max:
26" (660mm)
Equilibrations length-min:
16" (406mm)
Maximum approximate volume:
1/2 gal
Number of heating stations:
14
Maximum height (w/o finish):
15" (390mm)
Total number of nose holders:
256
Center distance between lanes:
6" (152mm)
Maximum support ring diameter:
2" (50.8mm)
Center distance between preforms:
2.75" (70mm)
Overall mold dimensions-each half:
6"W x 13.875"H x 3.75"D
Number of heater elements per bank:
20
Mold bottom diameter (max.3 pc molds):
4.247" (106mm)
Total number temp. controlled zones- per bank:
20
Total number temp. controlled zones- total per machine:
40
Subcategory:
Plastic molding
Subcategory 2:
Plastic blow mold

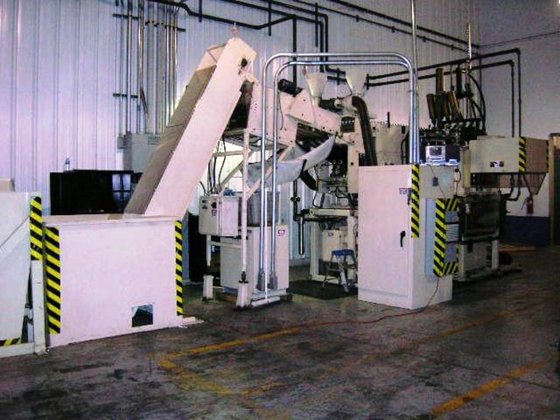

Description

Equipped With:
* 30 HP AC Drive Motor and Controls * Quick Panel Programmable Touch Screen Control * Bulk Bottle Feeder with Incline Conveyor, Hydraulic * Power Package and Touch Screen Controls. * This machine is capable of handling .20 to 3.0 Liter Containers. * Neckfinishes from 18mm to 43mm. Speeds of up to 6,000 containers per hour. Producing different sized simultaneously. Automatic, preform 4-Pocket Blow Molder capable of doing up to 4400 BHP depending on application. Bottleneck size range of: 18mm to 48mm and capable of molding bottle sizes of ½ liter pet with proper change parts.
