Location:
Navasota, TX
Manufacturer:

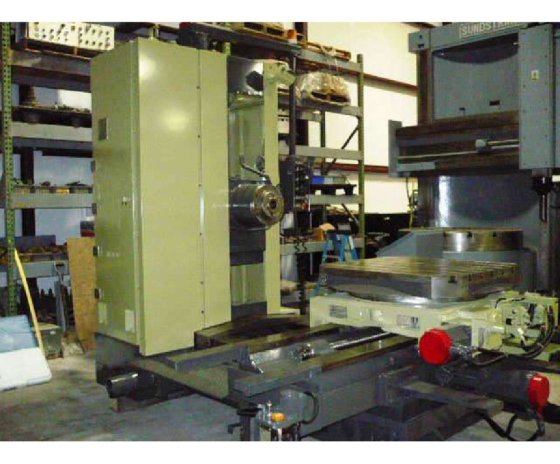

Kuraki boring mills
Model:
KBM-11
Control:
Fanuc 16 M

Specifications

Condition:
used
Year:
1994
Serial number:
1002
Stock number:
B57516
Feeds:
236" IPM
Rapids:
472" IPM
Control:
Fanuc 16 M
Main motor:
25 Hp.
Spindle size:
4.3"
Spindle taper:
# 50
Condition info:
Very Good
Spindle speeds:
1,500 Rpm's
Table indexing:
1 Degree
Rotary table size:
37"X41"
Spindle travel w axis:
11.8"
Table travel cross x axis:
39.37"
Rotary table maximum weight:
4,400 Lbs.
Saddle travel in & out z axis:
27.5"
Spindle head travel up & down y axis:
39"
Subcategory:
Cnc table type

Description

Specification Description
Control Fanuc 16 M
Spindle Size 4.3"
Spindle Taper # 50
Spindle Speeds 1,500 Rpm's
Feeds 236" IPM
Rapids 472" IPM
Spindle Head Travel Up & Down Y Axis 39"
Spindle Travel W Axis 11.8"
Saddle Travel In & Out Z Axis 27.5"
Table Travel Cross X Axis 39.37"
Rotary Table Size 37"X41"
Rotary Table Maximum Weight 4,400 Lbs.
Table Indexing 1 Degree
Main Motor 25 Hp.
Note: Machine Has Been Cleaned, Painted And
Cycled.
Condition Very Good
