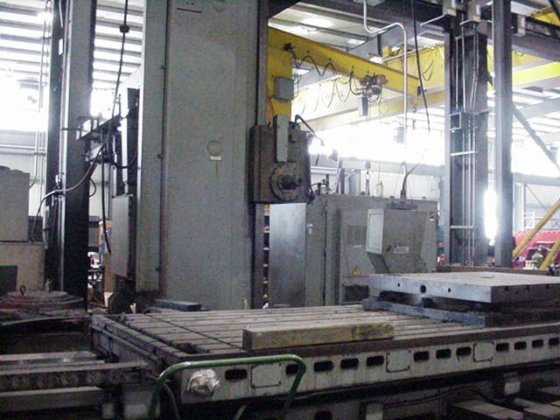

1977 5" Giddings & Lewis Frazier CNC Horizontal Boring Table Type in Navasota, TX, USA

Location:
Navasota, TX, USA
Price:
No price
Model:
70A - G5 - T
Control:
G & L 8000 M

Specifications

Condition:
used
Year:
1977
Serial number:
4101014
Stock number:
B575121
Height:
189"
Rapids:
200 I.P.M.
Dimensions:
281" L To R
Main motor:
30 Hp
Table load:
50,000 Lbs.
Table size:
60" X 144"
Dimensions 2:
264" F To B
Spindle size:
5"
Spindle taper:
#50
Condition info:
Very Good
Power draw bar:
Yes
Spindle speeds:
6 To 1,200 Rpm's
Outrigger in floor:
4
Ball screw on all axis:
Yes
Table travel cross x axis:
132"
Saddle travel in & out z axis:
60"
Control retrofitted in mid 1990's:
G & L 8000 M
Spindle head travel up & down y axis:
96"
Table saddle supports with in floor runways:
4
Subcategory:
Cnc table type

Description

optional
price: $14,500 48"x 60" g&l air lift rotary table
price: $479,500.00 retrofitted
fagor control, includes the following new axis drives
& motors, new spindle drive, main spindle motor
rebuilt, new electrics, new wire, hydraulic rebuilt
cleaned and painted
customer to provide electrical and air to
machine
