Location:
Navasota, TX

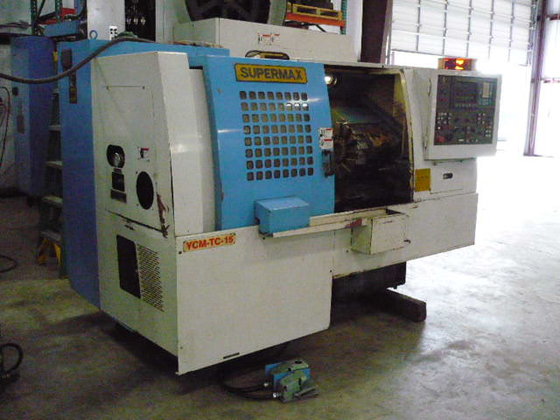

Manufacturer:
Supermax lathes
Model:
YCM TC 15
Spindle Nose:
A-2-5

Specifications

Condition:
used
Year:
1997
Serial number:
708415
Stock number:
L2150129
Weight:
9,000 Lbs.
Control:
Fanuc 0T
Chuck size:
6" 3-Jaw
Main motor:
15 Hp.
Turret type:
Vertical Disc.
Spindle nose:
A-2-5
Chip conveyor:
Yes
Condition info:
Very Good
Machine height:
65"
Spindle speeds:
5,000 Rpm's
Center distance:
21"
Swing over ways:
16"
Turret position:
12
Coolant and guard:
Yes
Spindle thru hole:
2"
Machine floor space:
102" X 63"
Swing over cross slide:
8"
Tail stock body travel:
17.72"
Tail stock quill travel:
5.12"
Tail stock quill diameter:
2.36"
Subcategory:
Cnc lathes
Subcategory 2:
Slant beds

Description

Equipped With:
Note: As Removed From Service. Machine Has Original Paint. May Be Seen Under Power In Our Warehouse.
