Top Seller

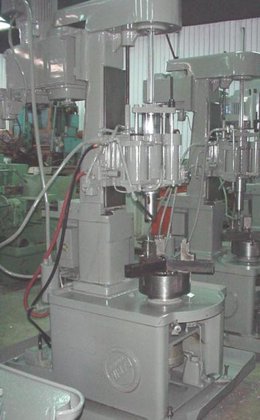

12" Used Babin Circl-Matic Automatic

12" Babin Circl-Matic Automatic Bolt Circle Drill in Navasota, TX

Location:
Navasota, TX
Manufacturer:
Babin
Model:
12

Specifications

Condition:
used
Stock number:
D41503
Note:
As From Service
Machine width:
34"
Spindle taper:
# 4 Morse
Condition info:
Very Good
Machine height:
104"
Machine weight:
2,700 Lbs.
Spindle speeds:
150 To 600 Or 150 To 900 Rpm's
Spindle stroke maximum:
6"
Standard bolt circle range:
0" To 19"
Drilling capacity in carbon steel:
1-1/2"
Center line of chuck to front of base:
19"
Max. diameter of work piece ( swing ):
23"
Max. o.d. chucking with standard jaws:
19"
Standard division of equal spaced holes:
4 - 6 - 8 & 12
Category:
Drills
Subcategory:
Bolt circle

Description

Specification Description
Standard Bolt Circle Range 0" To 19"
Standard Division Of Equal Spaced Holes 4 - 6 - 8 & 12
Max. Diameter Of Work Piece ( Swing ) 23"
Max. O.D. Chucking With Standard Jaws 19"
Center Line Of Chuck To Front Of Base 19"
Drilling Capacity In Carbon Steel 1-1/2"
Spindle Stroke Maximum 6"
Spindle Speeds 150 To 600 Or 150 To 900 Rpm's
Spindle Taper # 4 Morse
Machine Height 104"
Machine Width 34"
Machine Weight 2,700 Lbs.
Note As From Service
Condition Very Good
