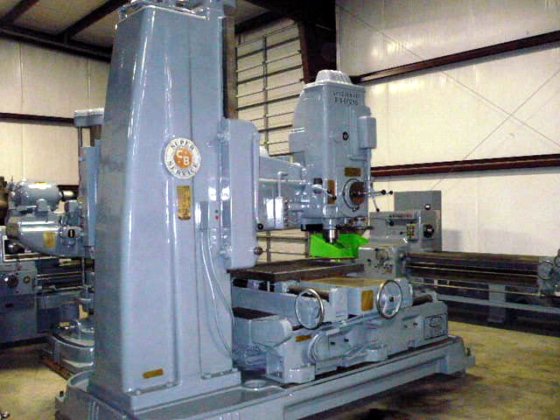

1954 Cincinnati Bickford Box Column Drill in Navasota, TX

Location:
Navasota, TX
Manufacturer:
Cincinnati
Model:
5761

Specifications

Condition:
used
Year:
1954
Serial number:
FH 86
Stock number:
D48109
Coolant:
Yes
Main motor:
20 Hp. 220 / 440
Spindle feeds:
.004 To .125 I.P.R.
Spindle taper:
#5 Morse
Threads leads:
8,11-1/2,14,18,20,27
Condition info:
Very Good
Machine height:
124"
Machine weight:
20,000 Lbs.
Spindle speeds:
20 To 2,300 Rpm's
Spindle travel:
20"
Power elevation:
Yes
Spindle diameter:
4"
Min. height under arm:
10"
Power clamp to column:
Yes
Machine width & length:
80" X 135"
Maximum height under arm:
34"
Bullard automatic positioning table:
30" X 20"
Category:
Drills
Subcategory:
Box column

Description

Specification Description
Maximum Height Under Arm 34"
Min. Height Under Arm 10"
Spindle Speeds 20 To 2,300 Rpm's
Spindle Taper #5 Morse
Spindle Travel 20"
Spindle Diameter 4"
Spindle Feeds .004 To .125 I.P.R.
Threads Leads 8,11-1/2,14,18,20,27
Main Motor 20 Hp. 220 / 440
Bullard Automatic Positioning Table 30" X 20"
Machine Width & Length 80" X 135"
Machine Height 124"
Machine Weight 20,000 Lbs.
Power Clamp To Column Yes
Power Elevation Yes
Coolant Yes
Note: Machine Has Been Cleaned, Painted & Cycled.
Condition Very Good
