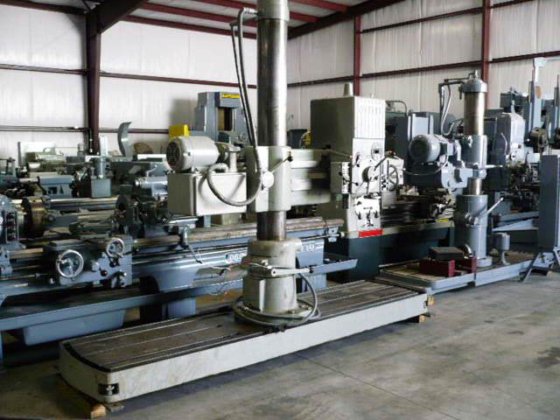

1962 4' X 9" Cincinnati Gilbert Double Base Radial Arm Drill in Navasota, TX

Location:
Navasota, TX
Manufacturer:
Cincinnati
Model:
4-A

Specifications

Condition:
used
Year:
1962
Serial number:
1093 Lot 19
Stock number:
D570047
Height:
101"
Weight:
5,700 Lbs
Arm length:
4'
Main motor:
3 Hp.
Floor space:
31" X 86"
Spindle taper:
# 4 Morse
Condition info:
Very Good
Spindle travel:
10"
Column diameter:
9"
Power elevation:
Yes
Spindle diameter:
3"
Spindle feeds (4):
.003 To .015
Power clamp on arm:
Yes
Spindle speeds (12):
40 To 1,600 Rpm's
Spindle to base max:
65"
Spindle to base min:
14-1/2"
Head traverse on arm:
38-3/4"
Manual clamp to head:
Yes
Capacity in cast iron:
1-3/4"
Capacity in mild steel:
1-1/2"
Column to spindle center max:
48"
Column to spindle center min:
9-1/4"
Automatic spindle reverse for tapping:
Yes
Category:
Drills
Subcategory:
Radial
