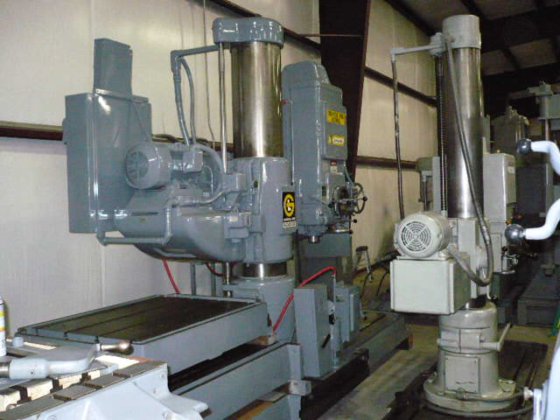

1981 5' X 15" Giddings & Lewis Double Base Radial Drill in Navasota, TX

Location:
Navasota, TX
Manufacturer:
Giddings & Lewis
Model:
954

Specifications

Condition:
used
Year:
1981
Serial number:
954-00264-81
Stock number:
D570041
Arm size:
5'
Tap leads:
8-1/2-11- 14,18, 20 & 27 TPI
Main motor:
20 Hp. 220 / 440
Floor space:
60" X 20' Long
Power clamp:
Yes
Spindle feeds:
.004 To .125 I.P.R.
Spindle taper:
# 5
Condition info:
Very Good
Machine height:
12-5"
Machine weight:
25,000 Lbs.
Spindle speeds:
4.75 To 1,750 Rpm's
Spindle travel:
16"
Column diameter:
15"
Column rotation:
360 Degrees
Power elevation:
Yes
Spindle diameter:
3-4/4"
Working table surface:
44" X 78"
Floor space with l bases:
11' Wide X 20' Long
Vertical adjustment of arm:
51"
Maximum height under spindle:
60"
Minimum height under spindle:
21"
Power rapid traverse to head:
Yes
Horizontal travel od head on arm:
48"
Maximum distance between spindle & column:
60"
Category:
Drills
Subcategory:
Radial

Description

Specification Description
Arm Size 5'
Column Diameter 15"
Column Rotation 360 Degrees
Vertical Adjustment Of Arm 51"
Horizontal Travel Od Head On Arm 48"
Maximum Distance Between Spindle & Column 60"
Maximum Height Under Spindle 60"
Minimum Height Under Spindle 21"
Working Table Surface 44" X 78"
Spindle Speeds 4.75 To 1,750 Rpm's
Spindle Taper # 5
Spindle Travel 16"
Spindle Diameter 3-4/4"
Spindle Feeds .004 To .125 I.P.R.
Tap Leads 8-1/2-11- 14,18, 20 & 27 TPI
Main Motor 20 Hp. 220 / 440
Machine Weight 25,000 Lbs.
Floor Space 60" X 20' Long
Floor Space With L Bases 11' Wide X 20' Long
Machine Height 12-5"
Power Clamp Yes
Power Elevation Yes
Power Rapid Traverse To Head Yes
Note: Machine Has Been Cleaned, Painted And
Cycled.
Condition Very Good
