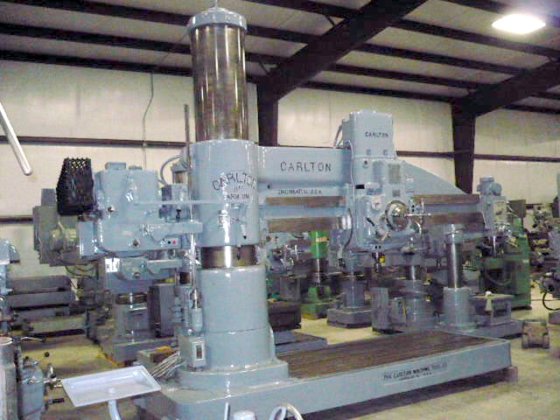

1940 8' X 19" Carlton Radial Drill in Navasota, TX

Location:
Navasota, TX
Manufacturer:
Carlton
Model:
Carlton 4A

Specifications

Condition:
used
Year:
1940
Serial number:
130
Stock number:
D570054
Height:
11'
Weight:
30,000 Lbs
Coolant:
Yes
Arm size:
8'
Box table:
Yes
Main motor:
25 Hp.
Power clamp:
Yes
Spindle feeds:
.004 To .125
Spindle taper:
# 6 Morse
Condition info:
Fair
Spindle speeds:
12 To 1,500 Rpm's
Spindle travel:
24"
Column diameter:
19"
Power elevation:
Yes
Spindle diameter:
4"
Spindle tap leads:
8, 11-1/2, 14,18
Push button controls:
Yes
Working t- slotted base:
56" X9' X 12"
Maximum height under arm:
84"
Power rapid traverse to head:
Yes
Category:
Drills
Subcategory:
Radial

Description

Specification Description
Arm Size 8'
Column Diameter 19"
Maximum Height Under Arm 84"
Spindle Speeds 12 To 1,500 Rpm's
Spindle Taper # 6 Morse
Spindle Travel 24"
Spindle Diameter 4"
Spindle Feeds .004 To .125
Spindle Tap Leads 8, 11-1/2, 14,18
Main Motor 25 Hp.
Weight 30,000 Lbs
Height 11'
Working T- Slotted Base 56" X9' X 12"
Power Clamp Yes
Power Elevation Yes
Power Rapid Traverse To Head Yes
Push Button Controls Yes
Box Table Yes
Coolant Yes
Note: Just Removed From Service. Column Has
Some Scoring. Machine Run Out Good.
Condition: Fair.
