Location:
Navasota, TX

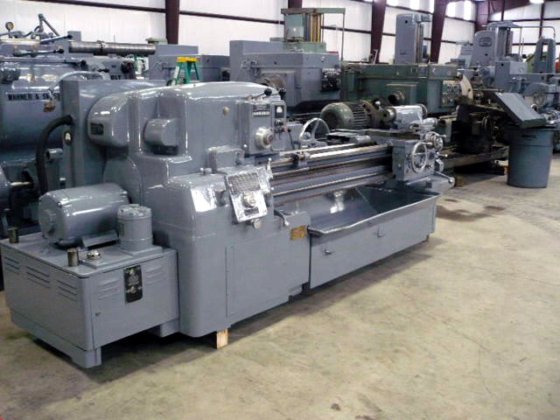

Manufacturer:
Monarch lathes
Model:
612
Spindle Nose:
D-1-6

Specifications

Condition:
used
Year:
1960
Serial number:
44539
Stock number:
L3000103
Feeds:
.0013 To .0821
Height:
60"
Weight:
9,650 Lbs.
Coolant:
Yes
Chuck size:
12" 4-Jaw
Main motor:
10 Hp 220 / 440
Floor space:
12' Long X 60 Wide
Chuck size 2:
12" 3-Jaw
Spindle hole:
2"
Spindle nose:
D-1-6
Threads inch:
2 To 120 TPI
Condition info:
Very Good
Spindle speeds:
12 To 1,500 Rpm's
Threads metric:
No
Center distance:
54"
Tail stock taper:
# 4 Morse
Swing over bed ways:
16"
Full length chip pan:
Yes
Swing over cross slide:
10"
Tail stock quill travel:
6"
Tail stock quill diameter:
4"
Hardened & ground bed ways:
Yes
Taper attachment (minus the clamp):
Yes
Subcategory:
Engine

Description

Specification Description
Swing Over Bed Ways 16"
Swing Over Cross Slide 10"
Center Distance 54"
Spindle Hole 2"
Spindle Speeds 12 To 1,500 Rpm's
Spindle Nose D-1-6
Chuck Size 12" 4-Jaw
Feeds .0013 To .0821
Threads Inch 2 To 120 TPI
Threads Metric No
Tail Stock Quill Diameter 4"
Tail Stock Quill Travel 6"
Tail Stock Taper # 4 Morse
Main Motor 10 Hp 220 / 440
Weight 7,650 Lbs.
Floor Space 12' Long X 60 Wide
Height 60"
Coolant Yes
Hardened & Ground Bed Ways Yes
Taper Attachment Yes
Full Length Chip Pan Yes
Note: Machine Has Been Cleaned, Painted And
Cycled. From Government Surplus.
Condition Very Good
