Location:
Navasota, TX
Manufacturer:

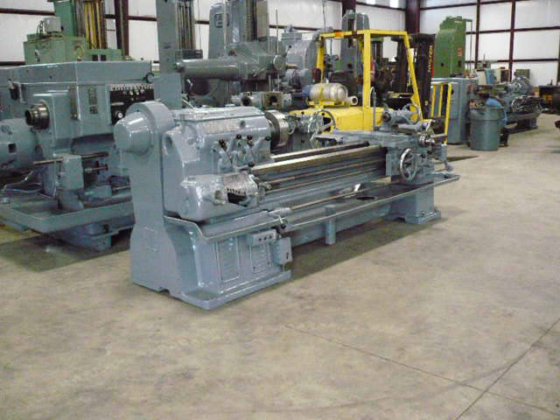

Monarch lathes
Model:
16
Spindle Nose:
D-1-6

Specifications

Condition:
used
Year:
1944
Serial number:
25070
Stock number:
L3000141
Feeds:
.0038 To .248
Height:
60"
Weight:
7650 Lbs.
Coolant:
Yes
Chuck size:
12" 3-Jaw
Main motor:
10 Hp 220 / 440
Floor space:
12' Long X 60 Wide
Spindle hole:
1-1/2"
Spindle nose:
D-1-6
Threads inch:
1-1/2 To .132
Condition info:
Good
Spindle speeds:
10 To 800 Rpm's
Threads metric:
No
Center distance:
78"
Tail stock taper:
# 4 Morse
Taper attachment:
Yes
Swing over bed ways:
18"
Full length chip pan:
Yes
Swing over cross slide:
10"
Tail stock quill travel:
5"
Tail stock quill diameter:
3"
Hardened & ground bed ways:
Yes
Subcategory:
Engine

Description

Specification Description
Swing Over Bed Ways 18"
Swing Over Cross Slide 10"
Center Distance 78"
Spindle Hole 1-1/2"
Spindle Speeds 10 To 800 Rpm's
Spindle Nose D-1-6
Chuck Size 12" 3-Jaw
Feeds .0038 To .248
Threads Inch 1-1/2 To .132
Threads Metric No
Tail Stock Quill Diameter 3"
Tail Stock Quill Travel 5"
Tail Stock Taper # 4 Morse
Main Motor 10 Hp 220 / 440
Weight 7650 Lbs.
Floor Space 12' Long X 60 Wide
Height 60"
Coolant Yes
Hardened & Ground Bed Ways Yes
Taper Attachment Yes
Full Length Chip Pan Yes
Note: Machine Has Been Cleaned, Painted And
Cycled.
Condition Good
