Location:
Navasota, TX
Manufacturer:

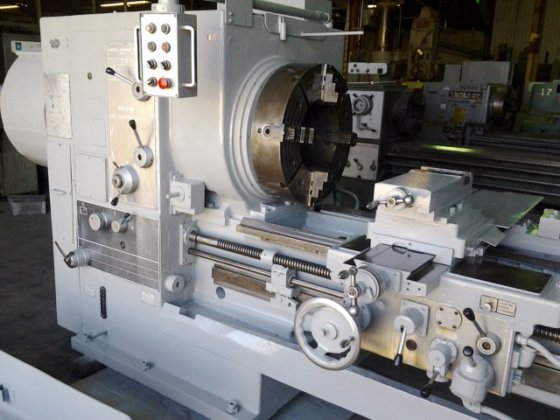

Mazak lathes
Model:
30
Spindle Nose:
A-20

Specifications

Condition:
used
Stock number:
L410627
Weight:
18,000 Lbs.
Chip pan:
Yes
Main motor:
20 Hp
Steady rest:
Yes
Thread dial:
Yes
Spindle hole:
12-1/2"
Spindle nose:
A-20
Bed way width:
22"
Condition info:
Very Good
Machine height:
75"
Rapid traverse:
Yes
Spindle speeds:
5 To 300 Rpm's
Center distance:
120"
Condition info 2:
Good
Feeds cross (40):
.0013 To .0178 IPR
Feeds long. (40):
.0025 To .0356 IPR
Tail stock taper:
# 6 Morse
Taper attachment:
Yes
Threads inch (50):
1 To 28 T.P.I.
Machine floor space:
144" L-R To 102" F-B
Swing over bed ways:
30"
Threads metric (41):
1 To 28 MM
Push button controls:
Yes
Swing over cross slide:
20-3/4"
Tail stock quill travel:
11-13/16"
Tail stock quill diameter:
3-1/2"
Chuck size with 12-1/2" hole (2):
24" 4-Jaw
Subcategory:
Hollow spindle

Description

Specification Description
Swing Over Bed Ways 30"
Swing Over Cross Slide 20-3/4"
Bed Way Width 22"
Spindle Hole 12-1/2"
Center Distance 120"
Spindle Speeds 5 To 300 Rpm's
Spindle Nose A-20
Chuck Size With 12-1/2" Hole (2) 24" 4-Jaw
Feeds Long. (40) .0025 To .0356 IPR
Feeds Cross (40) .0013 To .0178 IPR
Threads Inch (50) 1 To 28 T.P.I.
Threads Metric (41) 1 To 28 MM
Tail Stock Quill Diameter 3-1/2"
Tail Stock Quill Travel 11-13/16"
Tail Stock Taper # 6 Morse
Main Motor 20 Hp
Weight 18,000 Lbs.
Machine Floor Space 144" L-R To 102" F-B
Machine Height 75"
Rapid Traverse Yes
Steady Rest Yes
Chip Pan Yes
Taper Attachment Yes
Thread Dial Yes
Push Button Controls Yes
Note: Machine Has Been Cleaned, Painted & Cycled
Condition Very Good
