Location:
Navasota, TX
Manufacturer:
National lathes
Model:
LAP-32 -120
Spindle Nose:
A-15

Specifications

Condition:
used
Year:
1982
Serial number:
12229
Stock number:
L41074
Weight:
23,750 Lbs.
Main motor:
25 Hp.
Steady rest:
20" Roller Type
Thread dial:
Yes
Spindle hole:
9"
Spindle nose:
A-15
Bed way width:
26"
Condition info:
Very Good
Machine height:
66-1/2"
Rapid traverse:
4 Way
Center distance:
120"
Condition info 2:
Good
Feeds cross (40):
.008 To .488 IPR
Feeds long. (40):
.0024 To 1.453 IPR
Tail stock taper:
# 6 Morse
Taper attachment:
Yes
Threads inch (50):
1 To 60 T.P.I.
Machine floor space:
223" L-R To 102" F-B
Swing over bed ways:
32"
Threads metric (41):
.25 To 15 MM
Push button controls:
Yes
Swing over cross slide:
26"
Chip pan (not pictured):
Yes
Chuck size with 9" hole:
25" 4 Jaw
Tail stock quill travel:
12"
Chuck size with 9" hole 2:
24" 4 Jaw
Spindle speeds (12 steps):
5 To 300 Rpm's
Tail stock quill diameter:
3-1/2"
New nut & screw cross slide:
Yes
Weight between center with steady rest:
22,000 Lbs.
Weight between center without steady rest:
17,000 Lbs.
New wiring to cross slide and new seal tight:
Yes
Subcategory:
Hollow spindle

Description

Specification Description
Swing Over Bed Ways 32"
Swing Over Cross Slide 26"
Bed Way Width 26"
Center Distance 120"
Spindle Hole 9"
Spindle Speeds (12 Steps) 5 To 300 Rpm's
Spindle Nose A-15
Chuck Size With 9" Hole 25" 4 Jaw
Chuck Size With 9" Hole 24" 4 Jaw
Feeds Long. (40) .0024 To 1.453 IPR
Feeds Cross (40) .008 To .488 IPR
Threads Inch (50) 1 To 60 T.P.I.
Threads Metric (41) .25 To 15 MM
Tail Stock Quill Diameter 3-1/2"
Tail Stock Quill Travel 12"
Tail Stock Taper # 6 Morse
Weight Between Center Without Steady Rest 17,000 Lbs.
Weight Between Center With Steady Rest 22,000 Lbs.
Rapid Traverse 4 Way
Steady Rest 20" Roller Type
Main Motor 25 Hp.
Weight 23,750 Lbs.
Machine Floor Space 223" L-R To 102" F-B
Machine Height 66-1/2"
Chip Pan (Not Pictured) Yes
Taper Attachment Yes
Thread Dial Yes
Push Button Controls Yes
New Nut & Screw Cross Slide Yes
New Wiring To Cross Slide And New Seal Tight Yes

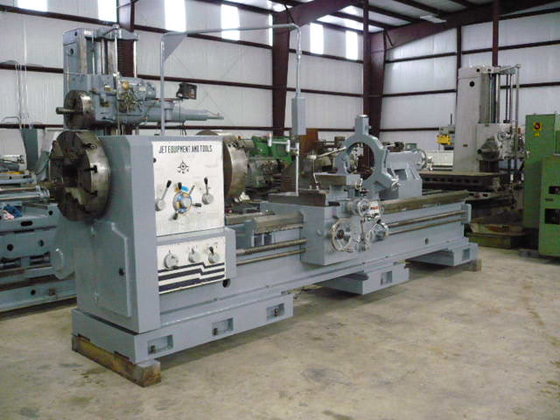

Note: Machine Has Been Cleaned, Painted And
Cycled.
Condition Very Good
