Location:
Elk River, MN
Model:

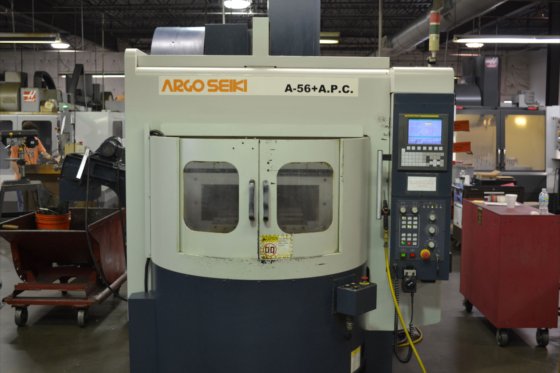

A-56+ APC
Spindle Taper:
CAT 40

Specifications

Condition:
used
Year:
2005
Stock number:
2530
Pallet size:
23.62" x 15.75"
Spindle motor:
10 HP
Spindle taper:
CAT 40
X-axis travel:
22"
Y-axis travel:
16.14"
Z-axis travel:
16.14"
Spindle speeds:
12,000 RPM
Number of pallets:
2
Maximum tapping speed:
6,000 RPM
Rapid rate on all axes:
1890 IPM
Maximum work piece weight:
440 LBS
Approximate machine weight:
11,000 LBS
Maximum feed rate on all axes:
590 IPM
Approximate machine dimensions:
70" x 120" x 98"H
Automatic tool changer capacity:
24
Approx. tool change time - chip to chip:
2.5 Seconds
Approx. tool change time - tool to tool:
1.25 Seconds

Description

Equipped With:
Fanuc OiM-C CNC Control
Rotary Pallet Changer
12,000 RPM Spindle (Standard is 8000)
Optional 24 Station Side Mount ATC
Chip Conveyor
Chip Auger
Macro "B"
Coordinate Rotation & Scaling
PCMCIA Slot + 256K Memory
