Top Seller

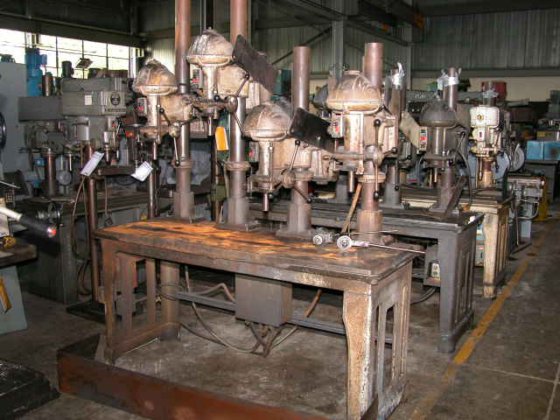

20" WALKER TURNER 4-SPINDLE DRILL
Location:
Medina, MN
Manufacturer:
Walker presses
Capacity:
3/4"

Specifications

Condition:
used
Stock number:
15212
Table height:
36"
Throat depth:
10"
Spindle taper:
#2 MT
Condition info:
USED
Capacity - steel:
3/4"
Spindle motors - 4:
1.5 HP 220/440/3/60, 1750 RPM
Diameter of columns:
3 3/4"
Table size, working:
24" X 70"
Capacity - cast iron:
1"
Approx. machine weight:
1,600 LBS
Down travel of spindle:
6"
5-speeds by step pulley:
400 - 2600 RPM
Approx machine dimensions:
76" (LR) X 42" (FB) X 82" (H)
Distance between spindles:
17 1/2"
Heads adj. vertically by rack & crank:
20"

Description

Equipped With:
2-TAPPING HEADS
AS TAKEN FROM SERVICE - TEMPORARY SPECIFICATION
MACHINES SPECIFICATIONS SUBJECT TO VERIFICATION AND CHANGE. SPECIFICATIONS SHOULD BE VERIFIED PRIOR TO PURCHASE.
