FRAVOL R10 EDGEBANDER (W/PRE-MILL &
Location:
Spain
Price:
$45,511 USD
Manufacturer:
FRAVOL
Model:
R10

Specifications

Condition:
used
Recnum:
EO-011998
Comments:
A "loaded" FRAVOL - A lot of equipment at a very attractive price!
Machtype:
EDGEBANDER (W/PRE-MILL & CORNER ROUNDING)
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
380/400 V, 50/60 Hz, 3 Ph.
Appr. repl. cost:
110000

Description

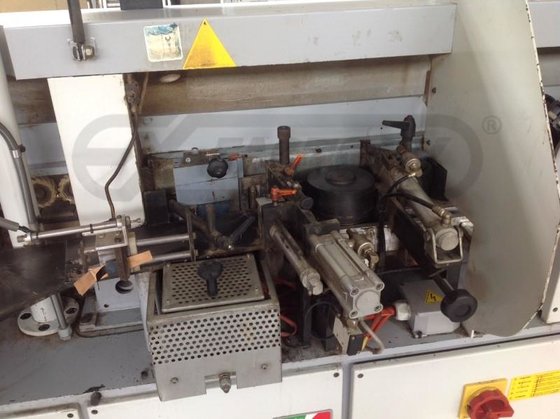

FRAVOL R 10 Edgebander with Pre-Mill & Corner Rounding;Edge & Workpiece Capacity: 0.4 - 20 mm (0.015 - 0.787") edge; 10 - 60 mm (0.4 - 2.36") panel thickness; 120 mm (4.72") min. panel length and 60 mm (2.36") min. panel width.Equipped with:

-- Pre-milling Station, (2) motors @ 1.86 KW (2.5 HP), 12.000 RPM, LH & RH rotation w/pneumatic jump control for chip-free and clean panel edges.

-- Automatic Edgemagazine, for strip & coil stock.

-- "Teflon lined" glue tank with bi-directional glue roller.Workstations:

-- End Trimming: (2) Motor 0.50 KW (0.67 HP) 12,000 RPM, automatic chamfer from control panel 0•- 15°.

-- Flush Trimming: Top/bottom rough milling unit, (2) motors, 1.10 KW (1.50 HP) 12,000 RPM.

-- Fine Trimming Station: Top/bottom, (2) motors, 1.10 kW (1.5 HP) 12,000 RPM, bevels 0° - 25° , for flush/radius/chamfer trimming; horizontal and vertical tracing wheels, equipped with banding thickness gauge block feature for quick and easy set-up/change over.

-- 2-Motor corner rounding unit for leading & trailing edges.

-- Top & bottom radius profile scraping unit.

-- Top & Bottom glue scrape unit.

-- Buffing Station: Top/bottom (2) motors, 0.09 KW (0.125 HP) 2,800 RPM.Complete with:

-- PLC Program Control, soft button key-pad for data entry, LCD display panel.

-- Manual up/down hold-down pressure beam ~ padded sound enclosure.
