Location:
Contamine-sur-Arve, France

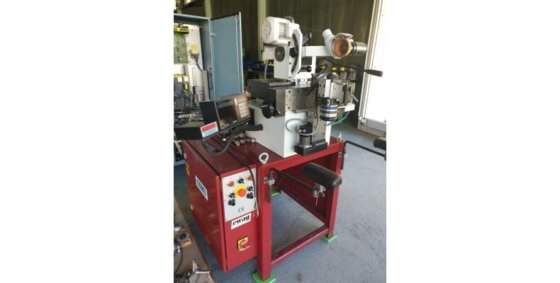

Manufacturer:
EWAG
Model:
DS 1 CNC
Weight:
500 [kg]

Specifications

Condition:
used
Year:
1995
Stock number:
7213P
Weight:
500 [kg]
Dimension:
1350x950x750 [mm)
Stroke y:
120 [mm]
Stroke x1:
100 [mm]
Stroke x2:
120 [mm]
Stroke z1:
50 [mm]
Orientation:
+/- 45 [°]
Spindle speed:
2000-8500 [rpm]
Continuous axe:
360[°]
Manual positioning:
0°,15°,30°,45°,60°,90°
Max wheel diameter:
100 [mm]
Cylindrical grinding:
60-800 [rpm]
Stroke z2( oscillating arm):
200 [mm]

Description

Control CNC type EIP 600
Software Uniprog +
Optical ISOMA 40x for peripheral vision
Optical ISOMA 40x for axial vision and radius grinding
Cross-slide ISOMA(résolution 0.001[mm])
Encoder Linear glass scale and display unit SONY (résolution 0.001[mm])for X axe
Encoder Linear glass scale and display unit (résolution 0.01[mm])for U axe
Working grinding wheels facing device
Radius grinding device
14 various grinding wheel stakes
Various grinding wheel CBN and diamond
Ewag WS 11 with CNC contol integrated by Schaller
