Location:
Contamine-sur-Arve, France
Manufacturer:
EWAG

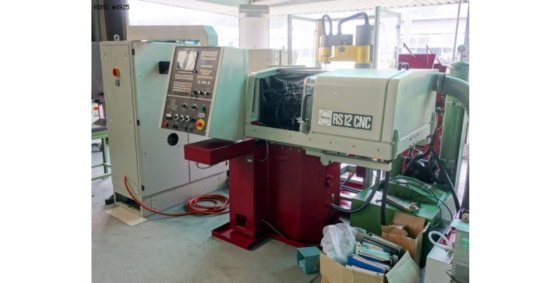

Model:
RS 12 CNC - RT6
Weight:
1600 [kg]

Specifications

Condition:
used
Year:
1993
Stock number:
P982
Axes a, b:
-8 to +18, 241 [°]
Axes x x y x z:
296 x 131 x 83 [mm]
Machine weight:
1600 [kg]
Grinding spindle power:
3 [kW]
Grinding spindle speed:
1000-8000 [Rpm]
Resolution of linear axes:
0.001 [mm]
Resolution of rotary axes:
0.001 [°]
Machine dimensions (h, w, l):
2000 x 3000 x 3250 [mm]
Max. fact feed rate, rotary axes:
96 [°/s]

Description

TECHNICAL DETAILS
Axes A, B : -8 to +18, 241 [°]
Axes X x Y x Z : 296 x 131 x 83 [mm]
Resolution of linear axes : 0.001 [mm]
Resolution of rotary axes : 0.001 [°]
Max. fast feed rate, linear axes X,Y : 6 , 3.75 [m/min.]
Max. fact feed rate, rotary axes : 96 [°/s]
Grinding spindle power : 3 [kW]
Grinding spindle speed : 1000-8000 [Rpm]
Machine dimensions (H, W, l): 2000 x 3000 x 3250 [mm]
Machine weight : 1600 [kg]

EQUIPMENT
NC NUM 760
Second spindle HF
Automatic grinding wheel trueing device
Sensor RENISHAW
Oil mist extractor (280 kg)
Coolant unit (100 kg)
