Location:
Contamine-sur-Arve, France

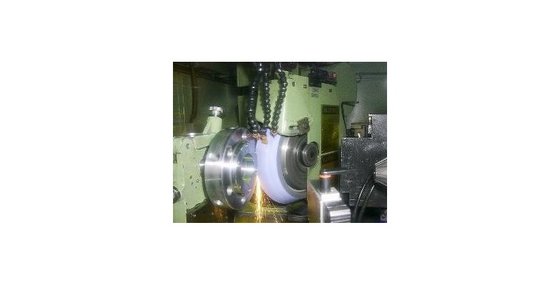

Model:
R2 1500B CNC
Weight:
11.300 [kg]

Specifications

Condition:
used
Year:
1997
Stock number:
7361
Supply:
tri 380V 50 Hz
Strokes (z/x):
1800 x 440 [mm]
Centers height:
275 [mm]
Machine weight:
11.300 [kg]
Tail stock cone:
CM5
Dimensions (lxdxh):
6420 x 5330 x 2080 [mm]
Grinding wheel speed:
1430 [tr/min]
Max. transversal feed:
5.000 [mm/min]
Max. grinding diameter:
550 [mm]
Max. longitudinal feed:
8.000 [mm/min]
Tail stock quill stroke:
80 [mm]
Distance between centers:
1.500 [mm]
Part holder headstock cone:
CM5
Internal spindle motor power:
16 [kW]
Internal spindle motor speed:
15000 [Rpm]
Part holder headstock speeds:
20 to 450 [Rpm]
External grinding wheel dimensions:
600 x 100 x 304,5 [mm]

Description

TECHNICAL DETAILS
Distance between centers : 1.500 [mm]
Centers height : 275 [mm]
Max. grinding diameter : 550 [mm]
Strokes (Z/X) : 1800 x 440 [mm]
Max. longitudinal feed : 8.000 [mm/min]
Max. transversal feed : 5.000 [mm/min]
External grinding wheel dimensions : 600 x 100 x 304,5 [mm]
Grinding wheel speed : 1430 [tr/min]
Grinding wheel holder headstock power : 12,5 [kW]
Part holder headstock speeds : 20 to 450 [Rpm]
Part holder headstock cone : CM5
Internal spindle motor speed : 15000 [Rpm]
Internal spindle motor power : 16 [kW]
Max. distance between internal spindle nose / part holder headstock : 1400 [mm]
Tail stock quill stroke : 80 [mm]
Tail stock cone : CM5
Supply : tri 380V 50 Hz
Dimensions (LxDxH) : 6420 x 5330 x 2080 [mm]
Machine weight : 11.300 [kg]

EQUIPMENT
control CNC SIEMENS Sinumerik 810G
axis B for continuous indexing of the grinding wheel holder headstock
feeds speeds variator
internal spindle speeds variator
hydraulic tail stock with fine adjustment
dynamic grinding wheel balancing GT Elettronica VM23
part measuring device MARPOSS ESn
2 diameter probes MARPOSS S500
1 length probe MARPOSS
fix wheel-dresser upon workpiece-head
lubricating tank 700 liters with pump and cooling unit
paper filter and magnetic separator
smoke extractor
2 rests 3 points
2 external grinding wheel holder flanges
1 external grinding wheel
1 internal grinding wheel with grinding wheel holder
