Location:
Contamine-sur-Arve, France
Model:

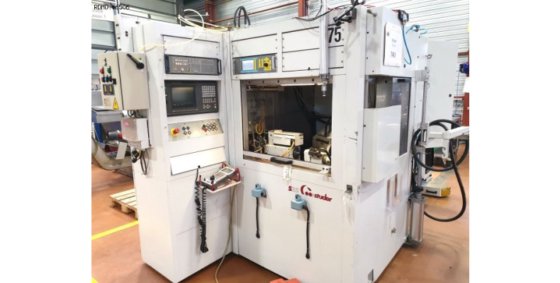

S25 CNC
Grinding Length:
100 [mm]

Specifications

Condition:
used
Year:
1999
Stock number:
7461
X cross axis:
130 [mm]
Centers height:
100 [mm]
Width x boring:
127 x 50 [mm]
Grinding length:
100 [mm]
Peripheral speed:
30 [m/s]
Grinding diameter:
50 [mm]
Assembling position:
0/30 [°]
Z longitudinal axis:
170 [mm]
Grinding wheel diameter:
400 [mm]
Peripheral speed option:
45 [m/s]
Distance between centers:
200 [mm]
Oscillating shaft option:
1 [mm]
Oscillating shaft option 2:
5 [mm]

Description

TECHNICAL DETAILS
centers height : 100 [mm]
distance between centers : 200 [mm]
grinding length : 100 [mm]
grinding diameter : 50 [mm]
Z longitudinal axis : 170 [mm]
X cross axis : 130 [mm]
grinding wheel diameter : 400 [mm]
width x boring : 127 x 50 [mm]
assembling position : 0/30 [°]
peripheral speed : 30 [m/s]
peripheral speed option : 45 [m/s]
oscillating shaft option : 1 [mm]
oscillating shaft option : 5 [mm]

EQUIPMENT
CNC FANUC 16T
grinding wheel dynamic balancing DITTEL HBA 4000
diameter check with MOVOMATIC ES400
