Location:
Contamine-sur-Arve, France
Model:
TST 100 - 4R
Weight:
3900 [kg]

Specifications

Condition:
used
Year:
2000
Serial number:
T1000249
Stock number:
7786
Weight:
3900 [kg]
Feed axis b:
11 [°/sec]
Feed axis u:
0 to 3000 [mm/min]
Feed axis x:
0 to 3000 [mm/min]
Feed axis z:
0 to 9000 [mm/min]
Max. length:
100 [mm]
Spindle nose:
Camlock 4'
Centers height:
130 [mm]
Rotation speed:
45 to 1500 [Rpm]
Spindle boring:
39 [mm]
Installed power:
43 [kVA]
Electrical supply:
3x400V, 50 [Hz]
Internal diameter:
0.5 to 75 [mm]
Quick feed axis c:
1000 [Rpm]
Automatic orientation:
0 / 90 / 180 / 270 [°]
Internal spindle cone:
CM5
1 internal spindle gmn:
60.000 [Rpm]
1 internal spindle gmn 2:
30.000 [Rpm]
Transversal stroke axis u:
200 [mm]
Transversal stroke axis x:
50 [mm]
Longitudinal stroke axis z:
340 [mm]
Positioning precision axis b:
0,15 [']
Positioning precision axis c:
3 [']
Positioning precision axis u:
0,000125 [mm]
Positioning precision axis x:
0,0001 [mm]
Positioning precision axis z:
0,0001 [mm]
Axis c stroke (spindle orientation):
360 [°]

Description

TECHNICAL DETAILS
MACHINING CAPACITY
internal diameter : 0.5 to 75 [mm]
max. length : 100 [mm]
PART HOLDER HEADSTOCK
centers height : 130 [mm]
rotation speed : 45 to 1500 [Rpm]
spindle boring : 39 [mm]
internal spindle cone : CM5
spindle nose : Camlock 4'
axis C stroke (spindle orientation) : 360 [°]
positioning precision axis C : 3 [']
quick feed axis C : 1000 [Rpm]

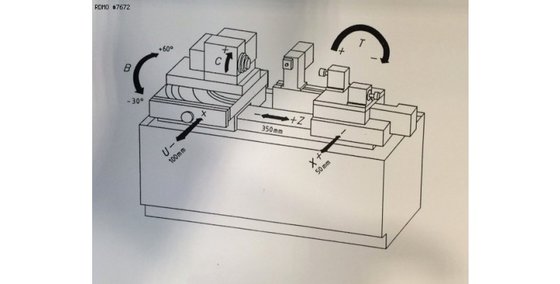

transversal stroke axis U : 200 [mm]
positioning precision axis U : 0,000125 [mm]
feed axis U : 0 to 3000 [mm/min]
stroke axis B (headstock orientation) : -30 to +60 [°]
positioning precision axis B : 0,15 [']
feed axis B : 11 [°/sec]
GRINDING WHEEL HOLDER TURRET SWIVELING THROUGH CNC
automatic orientation : 0 / 90 / 180 / 270 [°]
longitudinal stroke axis Z : 340 [mm]
positioning precision axis Z : 0,0001 [mm]
feed axis Z : 0 to 9000 [mm/min]
transversal stroke axis X : 50 [mm]
positioning precision axis X : 0,0001 [mm]
feed axis X : 0 to 3000 [mm/min]
electrical supply : 3x400V, 50 [Hz]
installed power : 43 [kVA]
dimensions : :3470 x 2770 x H. 2150 [mm]
weight : 3900 [kg]

EQUIPMENT
control CNC BRÜTSCH TPS 3000
1 internal spindle GMN : 60.000 [Rpm]
1 internal spindle GMN : 30.000 [Rpm]
1 internal spindle GMN (used in external) : 30.000 [Rpm]
spindle speed variator with programming box and digital visualization
oil mist extractor ELBARON RON/A
predisposition for coolant through part
predisposition for anti-fire
air conditioning RITTAL for electrical cabinet
centralized greasing
6 internal grinding wheels
1 chuck 6 jaws PRATT BRUNERD diameter 125 mm
2 jaw sets
