Location:
Contamine-sur-Arve, France
Price:
No price

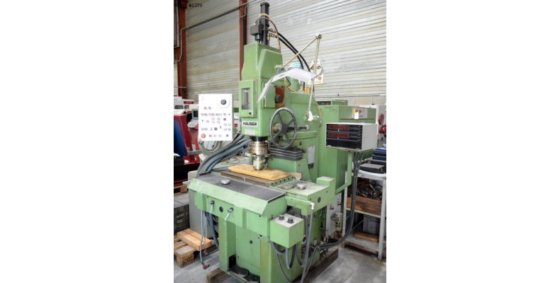

Model:
3SM-DR
Weight:
1 440 [kg]

Specifications

Condition:
used
Year:
1977
Stock number:
5129
Weight:
1 440 [kg]
Dimensions:
1 650 x 1 480 x 2 890 [mm]
Grinding speed:
9 000 – 225 000 [rpm]
Installed power:
7 [kW]
Table dimensions:
595 x 320 [mm]
Strokes x x y x z:
400 x 250 x 500 [mm]
Maxi weight on table:
200 [kg]
Rotation speed of planetary:
5 to 330 [rpm]
Grinding spindle vertical stroke:
3 to 110 [mm]
Distance spindle nose table surface:
480 [mm]
Distance between spindle axis and z slides:
310 [mm]

Description

- 2 axis digital display ELESTA
- device SENSITRON with headset
- 2 grinding motors 45S : 9.000 to 45.000 [Rpm]
- 1 grinding motor 80S : 40.000 to 80.000 [Rpm]
- 2 high speed turbine with devices Gyrowheel B
- centring steady rest
- extractor
- drawer cabinet with grinding wheels, grindind wheel holders, collets, etc...
