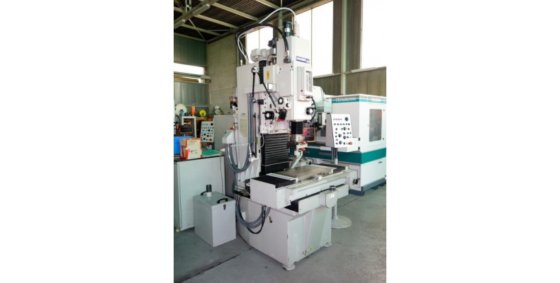

Location:
Contamine-sur-Arve, France
Model:
S3-DR
Weight:
300 [kg]

Specifications

Condition:
used
Serial number:
S30454
Stock number:
P997
6 t- slots:
10 [mm]
Maxi weight:
300 [kg]
Motor speed:
9 000 – 80 000 [rpm]
Radial feed:
6 [mm]
Air pressure:
5 bars
Planet speed:
4 500 – 22 500 [mm]
Table surface:
600 x 380 [mm]
Turbine speed:
100 000 – 160 000 [rpm]
Air consumption:
12 [m²/h]
Sleeve diameter:
100 [mm]
Vertical stroke:
120 [mm]
Total angle cone:
16°
Strokes x x y x z:
400 x 250 x 450 [mm]
Feeds axes x x y x w:
500 x 1 000 x 900 [mm]
Grinding head stroke:
450 [mm]
Positioning accuracy:
0.002 [mm]
Grinding maxi diameter:
170 – 300 [mm]
Distance spindle-column:
340 [mm]
Reading accuracy x axis:
0.001 [mm]
Reading accuracy y axis:
0.001 [mm]
Depth stop fine adjustment:
1 [mm]
Distance table-grinding wheel motor:
500 [mm]

Description

TECHNICAL DETAILS
strokes X x Y x Z : 400 x 250 x 450 [mm]
grinding head stroke : 450 [mm]
distance table-grinding wheel motor : 500 [mm]
distance spindle-column : 340 [mm]
grinding maxi diameter : 170 – 300 [mm]
total angle cone : 16°
table surface : 600 x 380 [mm]
6 T- slots : 10 [mm]
maxi weight : 300 [kg]
feeds axes X x Y x W : 500 x 1 000 x 900 [mm]
sleeve diameter : 100 [mm]
motor speed : 9 000 – 80 000 [rpm]
turbine speed : 100 000 – 160 000 [rpm]
planet speed : 4 500 – 22 500 [mm]
vertical stroke : 120 [mm]
radial feed : 6 [mm]
reading accuracy X axis : 0.001 [mm]
reading accuracy Y axis : 0.001 [mm]
depth stop fine adjustment : 1 [mm]
positioning accuracy : 0.002 [mm]
air consumption : 12 [m²/h]
air pressure : 5 bars

EQUIPMENT
Digital display X-Y
Tool cabinet ref 162335
Round table Ø 300 mm with water protection ref 144025
Extractor ref 162328
Centering microscope 35X ref 165849
Centering microscope 25X ref 146318
2 grinding motors 80S 40’000-80'000 Rpm ref 144021
2 grinding motors 45S 9’000-45'000 Rpm ref 144017
Alignment plate 3 points for motors ref 155422
Slots grinding device ref 144022
Set of slot wheel holder
Slot wheels trueing device ref 166964
Chuck 3 jaws, for round table rf 155438
Adjustable extension plate for motor ref 144023
Adjustable inclination plate (max 16°) for motor ref 126148
Set of wheel holders, stakes and rods
Wheel trueing device ref 155473
Set of collets EX 19
Set of support braces
Machine lamp
