Location:
Contamine-sur-Arve, France
Model:
NF01

Specifications

Condition:
used
Year:
1974
Stock number:
7728P
Weight:
1600 [kg]
Floor space:
2200 x 1200 x H. 1370 [mm]
Table stroke:
200 [mm]
Spindle speeds:
380 to 3540 [Rpm]
Collet clamping:
4 to 25 [mm]
Table dimensions:
820 x 200 [mm]
Max. milling diameter:
25 [mm]
Stroke of each spindle:
0 to 100 [mm]
Max. power of each spindle:
1,8 [kW]
Distance between spindle noses:
30 to 440 [mm]
Subcategory:
Milling
Subcategory 2:
Milling machine

Description

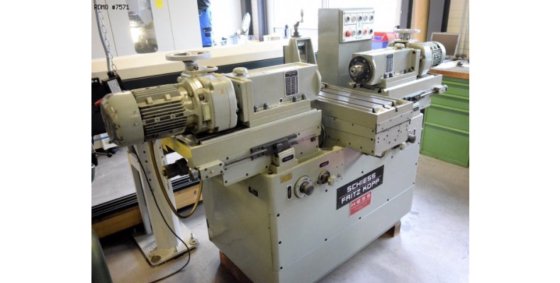

slots milling machine, with 2 spindles, hydraulic control

TECHNICAL DETAILS
max. milling diameter : 25 [mm]
collet clamping : 4 to 25 [mm]
spindle speeds : 380 to 3540 [Rpm]
max. power of each spindle : 1,8 [kW]
stroke of each spindle : 0 to 100 [mm]
distance between spindle noses : 30 to 440 [mm]
distance between table / spindle axis : 100 [mm]
table dimensions : 820 x 200 [mm]
table stroke : 200 [mm]
floor space : 2200 x 1200 x H. 1370 [mm]
weight : 1600 [kg]

EQUIPMENT
mechanical spindle speed variators
spindle motor with 2 speeds
1 vice
set of mills
2 collet holder
set of collets
