Location:
Contamine-sur-Arve, France
Manufacturer:

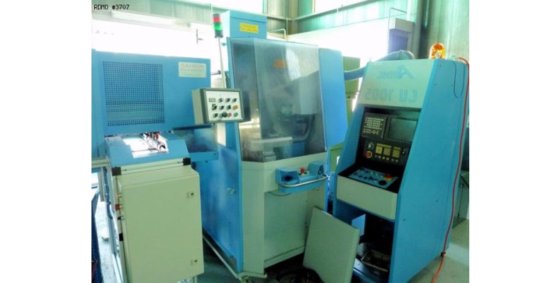

ALMAC
Model:
CU1005 CNC

Specifications

Condition:
used
Year:
2000
Serial number:
081160A338
Stock number:
6484P
Size:
1830 x 1250 x 1750 [mm]
Weight:
1 500 [kg]
Changer:
RANDOM 20 positions
Tools type:
ISO 25
Working feed:
0 - 5000 [mm/min.]
Spindle motor:
1.5/3.4 [kW]
Spindle speed:
20 000 [Rpm]
Installed power:
6 [kW]
Number of hours:
34373
Fixed table size:
350 x 140 [mm]
Spindle diameter:
60 [mm]
Strokes x x y x z:
220 x 120 x 170 [mm]
Subcategory:
Milling

Description

TECHNICAL DETAILS
number of hours : 34373
strokes X x Y x Z : 220 x 120 x 170 [mm]
fixed table size : 350 x 140 [mm]
working feed : 0 - 5000 [mm/min.]
spindle speed : 20 000 [Rpm]
spindle diameter : 60 [mm]
tools type : ISO 25
changer : RANDOM 20 positions
spindle motor : 1.5/3.4 [kW]
installed power : 6 [kW]
size : 1830 x 1250 x 1750 [mm]
weight : 1 500 [kg]

EQUIPMENT
control CNC FANUC 16i
rigid tapping
spindle cooling unit
oil mist extractor
measuring rule on the 3 axis (1/10 [um])
tools measurer Blum
Humard robotization for parts
3 R parts cell
lubricating tank with pump
