Location:
Contamine-sur-Arve, France
Model:
Picomax 80 CNC W2/3

Specifications

Condition:
used
Year:
1995
Stock number:
7287
Power:
16 [kW]
Weight:
3400 [kg]
Dimensions:
2500 x 2500 x 2450 [mm]
Tools type:
SK 30
Spindle power:
5 [kW]
Spindle speed:
50 - 9200 [Rpm]
Strokes (x,y):
700 x 315 [mm]

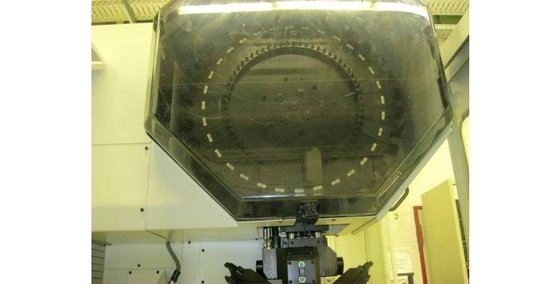

Tools changer:
32 [pos]
Table dimensions:
1230 x 410 [mm]
Max. weight on table:
250 [kg]
Work feeds (x,y,z,w):
9 / 9 / 4 / 5 [m/min]
Boring steel capacity:
30 [mm]
Max. adjustment head (w):
495 [mm]
Spindle sleeve stroke (z):
180 [mm]
Distance table/spindle nose:
165 to 660 [mm]
Subcategory:
Milling

Description

NC HEIDENHAIN TNC 415B
electronic crank-handle
lubricating tank with pump
measuring scales on the 4 axis
parts probe RENISHAW MP12
~ 30 tool-holders SK30
