Location:
Contamine-sur-Arve, France
Manufacturer:
WILLEMIN MACODEL
Model:
W418B

Specifications

Condition:
used
Year:
1993
Stock number:
7103P
Weight:
2500 [kg]
Age info:
1993 R.2000
Magazine:
24 [pos]
Type tools:
ISO 25
Floor space:
3.5 [sqm]
Cross stroke:
250 [mm]
Vertical stroke:
400 [mm]
Axe movement c, b:
360 , 110 [°]
Max. spindle speed:
18.000 [rpm]
Longitudinal stroke:
500 [mm]
Bar clearance diameter:
25 [mm]
Quick feed speed axes x, y, z:
20 [m/min.]
Subcategory:
Milling

Description

TECHNICAL DETAILS

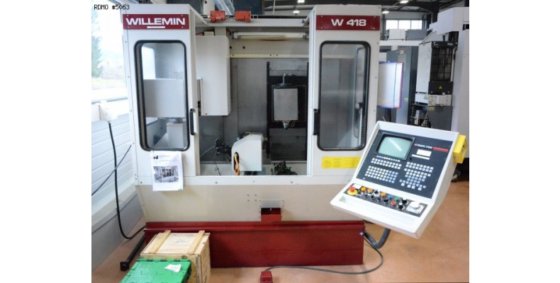

5 axes directional head machine. Retrofit in 2000 by Willemin Macodel
Longitudinal stroke : 500 [mm]
Cross stroke : 250 [mm]
Vertical stroke : 400 [mm]
bar clearance diameter : 25 [mm]
Quick feed speed axes X, Y, Z : 20 [m/min.]
Axe movement C, B : 360 , 110 [°]
Max. spindle speed : 18.000 [rpm]
Type tools : ISO 25
Magazine : 24 [pos]
Weight : 2500 [kg]
Floor space : 3.5 [sqm]

EQUIPMENT
CN NUM 750
1 tube clearance 22 [mm]
1 pedal
Divisor LEHMANN EA 160NC Ø32
