Location:
Contamine-sur-Arve, France
Manufacturer:
MARIO DI MAIO
Model:
BATTITRICE 800/T100 (HAMMER 800)
Stroke:
20 [mm]

Specifications

Condition:
used
Year:
2000
Stock number:
6106
Size:
700x1050x2000 [mm]
Weight:
2 600 [kg]
Voltage:
230 [V], 1-, 50/60 [Hz]
Max. trust:
100 [T]
Working stroke:
20 [mm]
Installed power:
11 [kW]

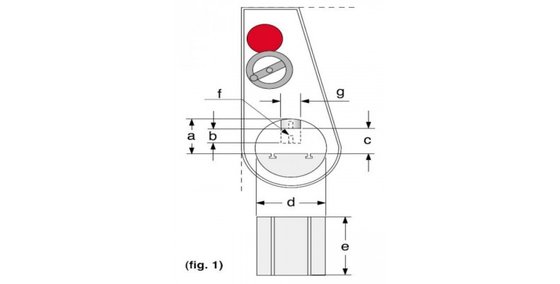

Size (fig 1)[mm]:
a=280 b=30 c=200(max) d=365 e=470 g=ø150 f=ø25x40
Strokes per minute:
500/min
Subcategory:
Mechanical press

Description

TECHNICAL DETAILS
For the continuous hammering of the chains
max. trust : 100 [T]
strokes per minute : 500/min
working stroke : 20 [mm]
installed power : 11 [kW]
voltage : 230 [V], 1-, 50/60 [Hz]
size : 700x1050x2000 [mm]
weight : 2 600 [kg]
size (fig 1)[mm] : a=280 b=30 c=200(max) d=365 e=470 g=ø150 f=ø25x40
