Location:
Contamine-sur-Arve, France
Manufacturer:
MISSLER
Model:
DEB 280 CE
Motor:
4 [kW]
Weight:
2000 [kg]

Specifications

Condition:
used
Year:
1997
Stock number:
7732
Supply:
tri 400V, 50 Hz
Weight:
2000 [kg]
Band size:
4100 x 32 x 1,1 [mm]
Motor power:
4 [kW]
Total power:
6,5 [kW]
Cutting speed:
10 - 120 [m/min.]
Capacity in the round:
280 [mm]
Capacity in the square:
280 x 280 [mm]
Stroke of the bar feed:
500 [mm]
Floor space (l x w x h):
2000 x 1900 x 2000 [mm]
Hydraulical tension of the band:
2000 [kg]
Subcategory:
Sawing

Description

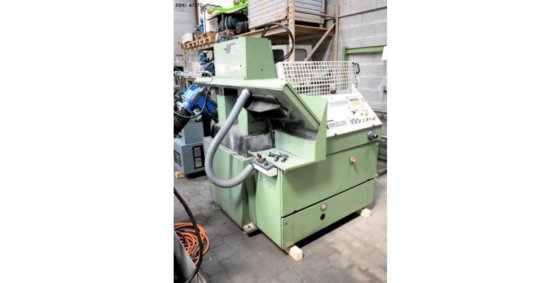

automatical and horizontal bad saw

TECHNICAL DETAILS
capacity in the round : 280 [mm]
capacity in the square : 280 x 280 [mm]
stroke of the bar feed : 500 [mm]
band size : 4100 x 32 x 1,1 [mm]
cutting speed : 10 - 120 [m/min.]
hydraulical tension of the band : 2000 [kg]
motor power : 4 [kW]
total power : 6,5 [kW]
floor space (L x W x H) : 2000 x 1900 x 2000 [mm]
weight : 2000 [kg]
supply : tri 400V, 50 Hz

EQUIPMENT
control COMPUCUT V3 (Allows to program 99 different lengthes with their quantities)
cutting speed continuous variation
hydraulical pressure of the adjustable vises
enter supply rollers
chips conveyor
